Battle Born 12V 100Ah GC2 Smart Heated LiFePO4 Battery

Description

The Battle Born 12V 100Ah GC2 Smart Heated LiFePO4 Battery delivers advanced lithium iron phosphate power in a GC2 form factor, combining smart monitoring capabilities with integrated heating technology. Designed for RV systems, marine applications, and off-grid energy setups, it provides reliable performance with enhanced visibility and control in all conditions.

Featuring Dragonfly IntelLigence® technology, this battery enables Bluetooth connectivity, wireless monitoring, and system-level communication. Users can track performance, receive alerts, and monitor system health through the Battle Born mobile app or compatible system components.

The integrated heating system supports cold-weather charging by warming internal battery cells when enabled, helping maintain performance in low-temperature environments where standard lithium batteries may be limited.

Providing 100Ah (1.28kWh) of usable energy, this battery supports deep cycle applications and scalable system configurations through series and parallel connections.

This battery is designed as a drop-in replacement for GC2 systems. Ensure your charging profile is configured for LiFePO4 and your system wiring matches your voltage and capacity requirements.

Best For

• RV and van life power systems
• Marine and coastal applications
• Off-grid cabins and remote setups
• Solar energy storage systems
• Smart battery systems requiring monitoring and cold-weather capability

Features

• Smart Monitoring & Connectivity
  Dragonfly IntelLigence® technology enables Bluetooth monitoring, system alerts, and performance tracking through the Battle Born mobile app.
• Integrated Heating Technology
  Allows charging in cold temperatures by warming internal cells when the heating function is enabled.
• GC2 Form Factor
  Designed as a drop-in replacement for GC2 battery systems, ideal for scalable battery banks in RV and off-grid applications.
• Deep Cycle LiFePO4 Performance
  Provides 100Ah (1.28kWh) of usable energy for consistent, long-lasting power.
• Advanced Battery Management System (BMS)
  Protects against overcharge, over-discharge, short circuit, and temperature extremes with built-in safety controls.

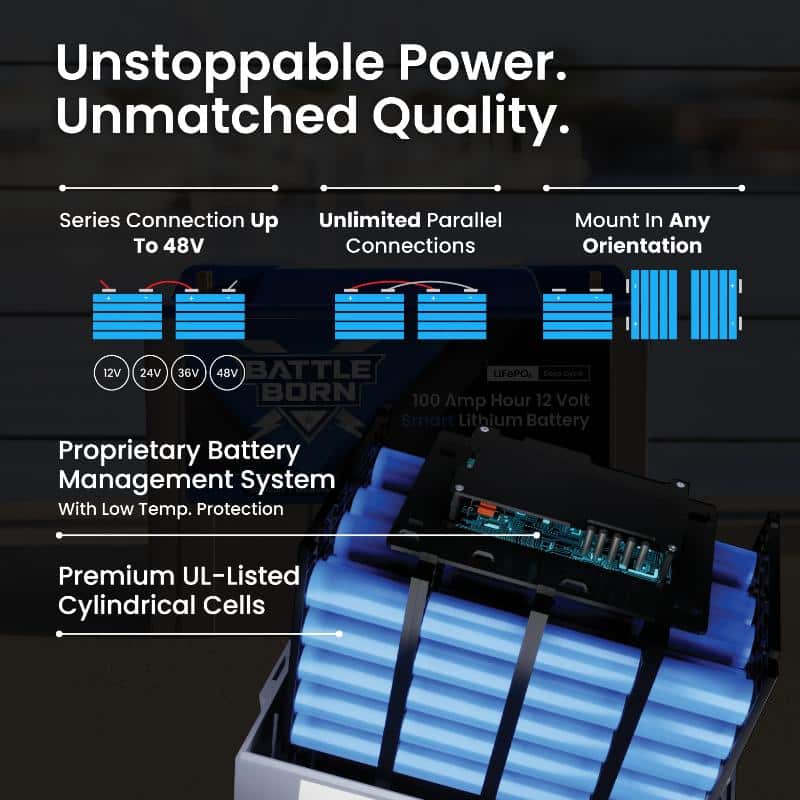

• Expandable System Capability
  Supports series up to 48V and unlimited parallel configurations for scalable systems.
• Long Cycle Life
  Designed for 3,000–5,000 deep discharge cycles.
• Flexible Installation
  Can be mounted in multiple orientations for versatile system layouts.

Specifications

Official Specification Sheet (PDF)
Official User Manual (PDF)
Official Mobile App User Guide (PDF)
Official Heat Instruction Manual (PDF)

Warranty
10-Year Limited Warranty

Battery Type
LiFePO4 Lithium Iron Phosphate

Rated Capacity
100Ah (1.28kWh)

Voltage
12V

Cycle Life
3,000–5,000 cycles

Max Continuous Discharge
100A

Max Peak Discharge
200A (30 seconds)

Charge Voltage
14.2V – 14.6V

Float Voltage
13.4V – 13.8V

Operating Temperature
Discharge: -4°F to 135°F (-20°C to 57.2°C)

Dimensions
10.31" L × 7.28" W × 11.02" H

Weight
31 lbs

Terminals
Brass flag terminals

Expandable Configuration
Series up to 48V / Parallel supported

Protection
Overcharge, over-discharge, short circuit, and temperature protection

Connectivity
Bluetooth, Wireless Mesh, Dragonfly IntelLigence®

Integrated Heating
Heat-enable terminal with internal heating system

Heating Power Draw
28W (when enabled)

GC2 vs Group 27 vs Group 31 Batteries

Why Choose GC2?

• Optimized for scalable battery banks in 24V and 48V RV and off-grid systems
• Vertical form factor allows efficient use of space in battery compartments
• Ideal for building higher-capacity systems with multiple batteries
• Well-suited for marine and mobile power applications requiring reliable deep cycle performance

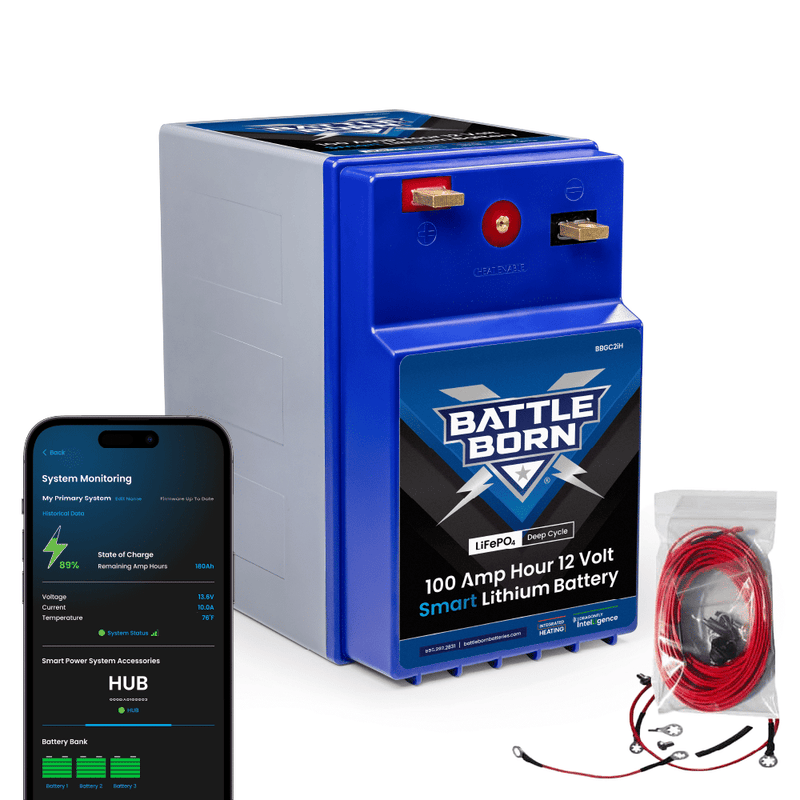

What's Included

• Battle Born 12V 100Ah GC2 Smart Heated LiFePO4 Battery
• Heat enable wiring kit (switch, wiring harness, and connectors)
• Jumper wire for multi-battery setups

Includes components required to enable and control the integrated heating system for cold-weather operation, along with smart monitoring capabilities.
