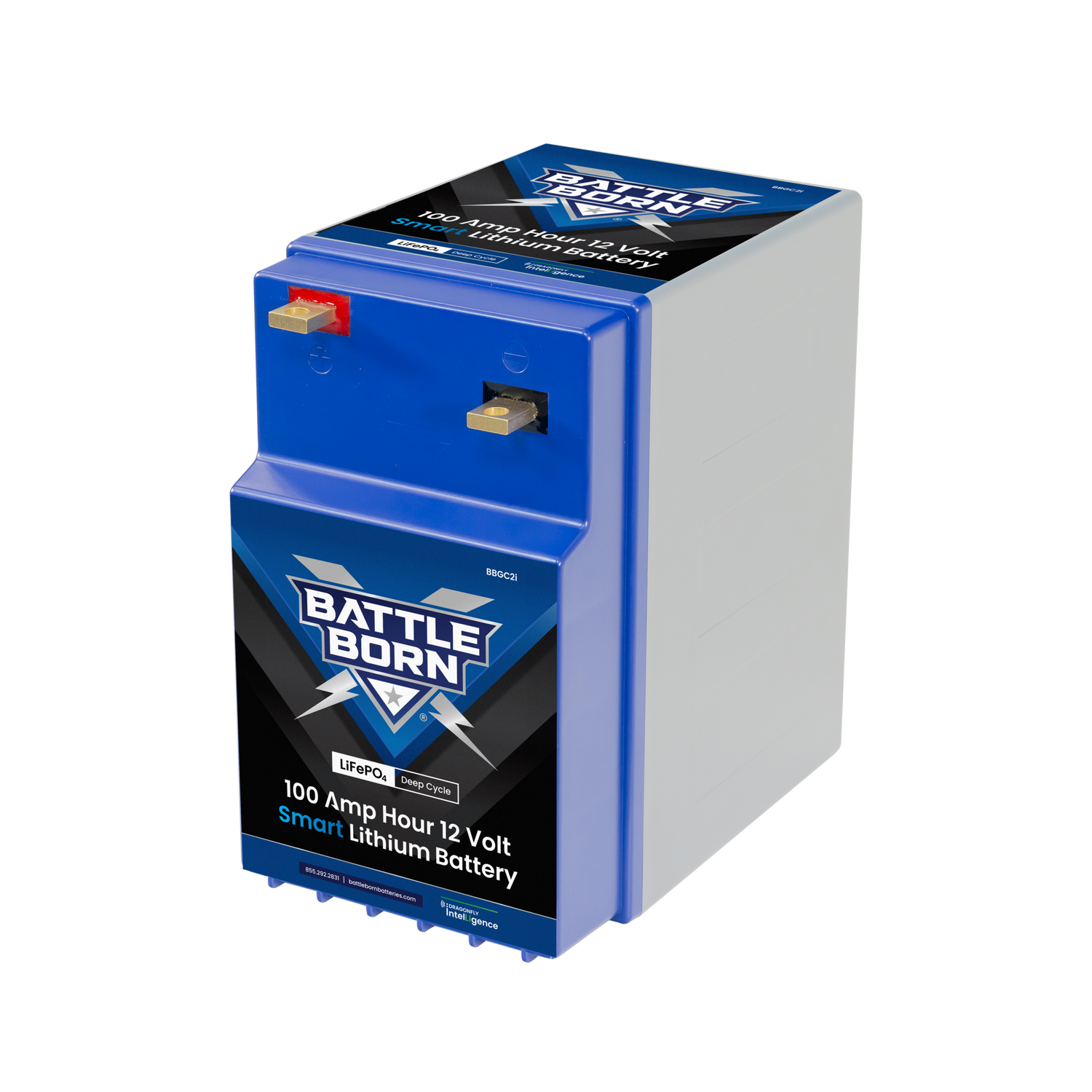

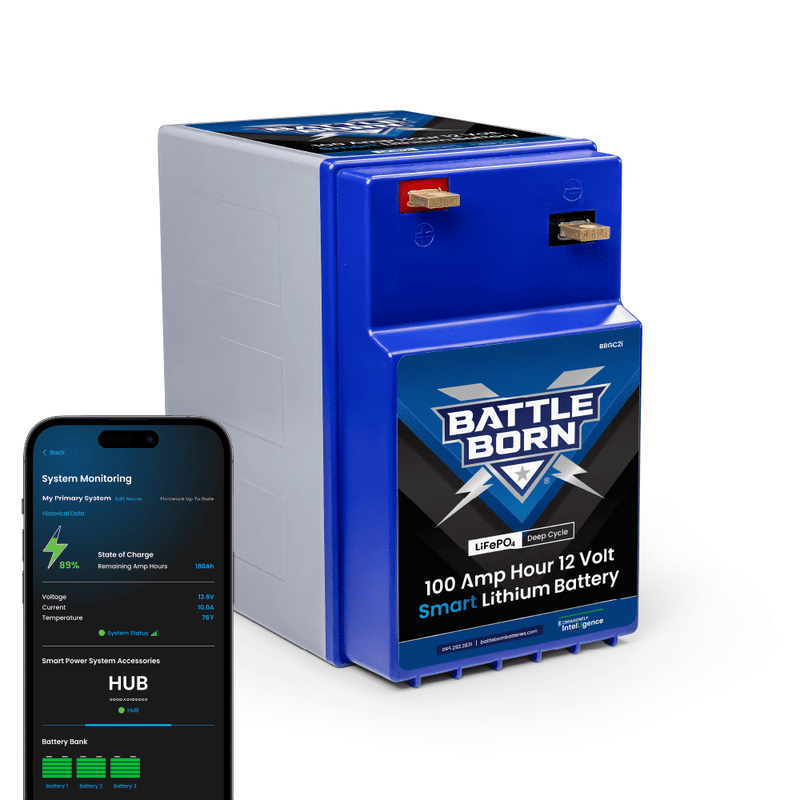

Battle Born 12V 100Ah GC2 Smart LiFePO4 Battery

Description

The Battle Born 12V 100Ah GC2 Smart LiFePO4 Battery delivers reliable lithium iron phosphate power in a GC2 form factor, designed for RV systems, marine applications, and off-grid energy setups that benefit from advanced battery monitoring and system connectivity. Built for real-world performance, it combines dependable deep cycle energy with smart communication technology for greater visibility and control.

Featuring Dragonfly IntelLigence® technology, this battery enables Bluetooth connectivity, wireless monitoring, and system-level communication. Users can track battery performance, receive alerts, and monitor system health through the Battle Born mobile app or integrated system components.

Providing 100Ah (1.28kWh) of usable energy, this battery supports deep cycle applications and scalable system configurations through series and parallel connections, allowing flexibility for both mobile and stationary power systems.

This battery is designed as a drop-in replacement for GC2 systems. Ensure your charging profile is configured for LiFePO4 and your system wiring matches your voltage and capacity requirements.

Best For

• RV and van life power systems
• Marine and coastal applications
• Off-grid cabins and remote setups
• Solar energy storage systems
• Smart battery systems requiring app-based monitoring

Features

• Smart Monitoring & Connectivity
  Built-in Dragonfly IntelLigence® technology enables Bluetooth monitoring, system alerts, and performance tracking through the Battle Born mobile app.
• GC2 Form Factor
  Designed as a drop-in replacement for GC2 battery systems, making it ideal for scalable battery banks in RV and off-grid applications.
• Deep Cycle LiFePO4 Performance
  Provides 100Ah (1.28kWh) of usable energy for consistent, long-lasting power in demanding applications.
• Advanced Battery Management System (BMS)
  Protects against overcharge, over-discharge, short circuit, and temperature extremes, while supporting internal balancing and system safety.
• Expandable System Capability

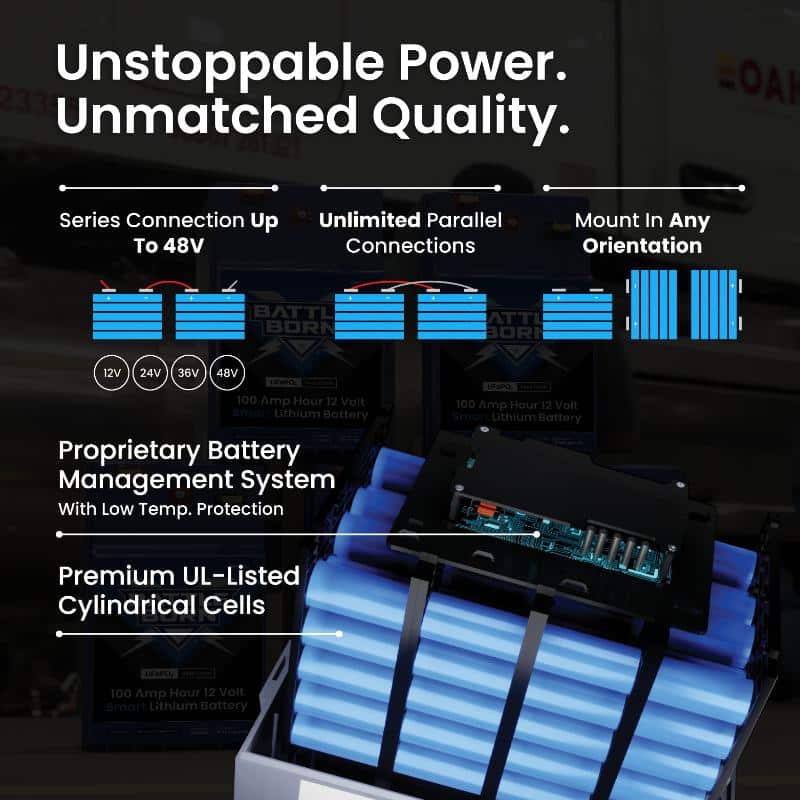

  Supports series and parallel configurations, allowing scalable energy storage systems up to 48V and beyond.
• Long Cycle Life
  Designed for 3,000–5,000 deep discharge cycles for long-term reliability.
• Lightweight Lithium Upgrade
  At approximately 31 lbs, it delivers high usable capacity with significantly less weight than comparable lead-acid batteries.
• Flexible Installation
  Can be mounted in multiple orientations and integrated into a wide range of system layouts.

Specifications

Official Specification Sheet (PDF)
Official User Manual (PDF)
Official Mobile App User Guide (PDF)

Warranty
10-Year Limited Warranty

Battery Type
LiFePO4 Lithium Iron Phosphate

Rated Capacity
100Ah (1.28kWh)

Voltage
12V

Cycle Life
3,000–5,000 cycles

Max Continuous Discharge
100A

Max Peak Discharge
200A (30 seconds)

Charge Voltage
14.2V – 14.6V

Float Voltage
13.4V – 13.8V

Operating Temperature
Discharge: -4°F to 135°F (-20°C to 57.2°C)

Dimensions
10.31" L × 7.28" W × 11.02" H

Weight
31 lbs

Terminals
Brass flag terminals

Expandable Configuration
Series up to 48V / Parallel supported

Protection
Overcharge, over-discharge, short circuit, and temperature protection

Connectivity
Bluetooth, Wireless Mesh, Dragonfly IntelLigence®

GC2 vs Group 27 vs Group 31 Batteries

Why Choose GC2?

• Optimized for scalable battery banks in 24V and 48V RV and off-grid systems
• Vertical form factor allows efficient use of space in battery compartments
• Ideal for building higher-capacity systems with multiple batteries
• Well-suited for marine and mobile power applications requiring reliable deep cycle performance
