Battle Born 12V 270Ah GC3 Smart LiFePO4 Battery

Description

The Battle Born 12V 270Ah LiFePO4 Smart GC3 Deep Cycle Battery delivers high-capacity lithium power with integrated smart monitoring for advanced system visibility and control. Designed for RV, marine, and off-grid applications, it combines reliable energy storage with real-time performance tracking.

With 270Ah (3.456kWh) of usable capacity and true deep cycle LiFePO4 chemistry, this battery provides consistent, long-lasting power for demanding systems. Built-in Dragonfly IntelLigence® technology enables Bluetooth connectivity, allowing users to monitor battery status, performance, and system health through the Battle Born mobile app.

Designed for scalable system integration, the GC3 supports series and parallel configurations, can be mounted in multiple orientations, and fits space-constrained installations with its tall, narrow form factor. For full system monitoring and advanced communication features, a compatible Battle Born Hub may be required.

Best For:

• RV and van life power systems
• Marine and coastal battery banks
• Off-grid cabins and remote setups
• Solar energy storage systems
• Smart power systems requiring monitoring and connectivity

Features

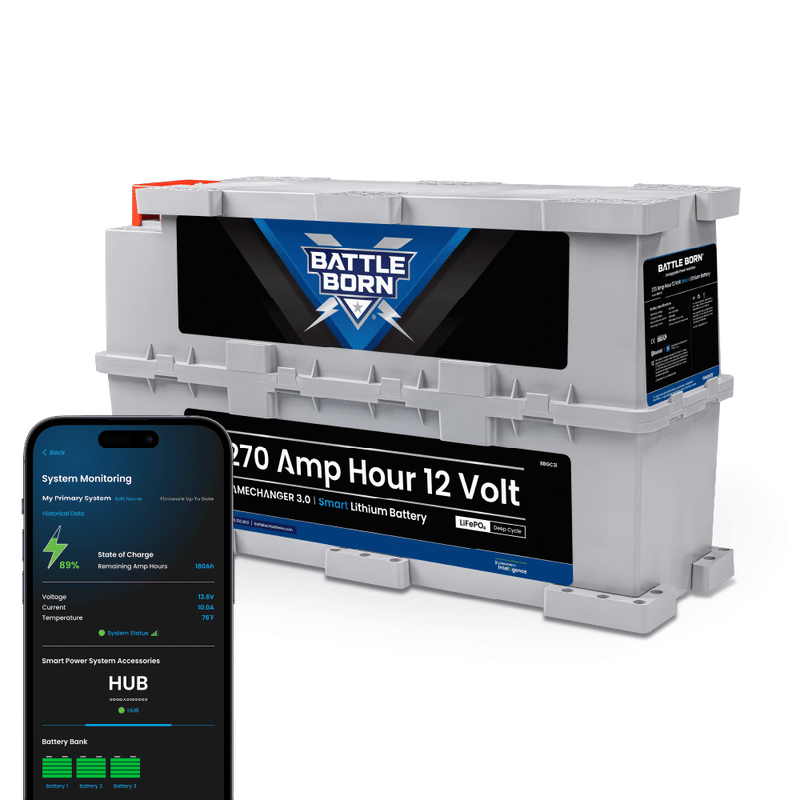

• Smart Battery Monitoring
  Built-in Bluetooth and Dragonfly IntelLigence® technology allow real-time tracking of battery performance and system health through the mobile app.
• Wireless System Communication
  Supports wireless mesh network connectivity for integration with compatible smart power systems.
• High-Capacity GC3 Form Factor
  Delivers 270Ah of lithium power in a tall, space-efficient footprint for demanding installations.
• True Deep Cycle LiFePO4 Performance
  Provides 100% usable capacity with stable lithium iron phosphate chemistry for reliable, long-term energy delivery.
• Integrated Battery Management System (BMS)
  Protects against voltage, temperature, and short circuit conditions for safe operation.

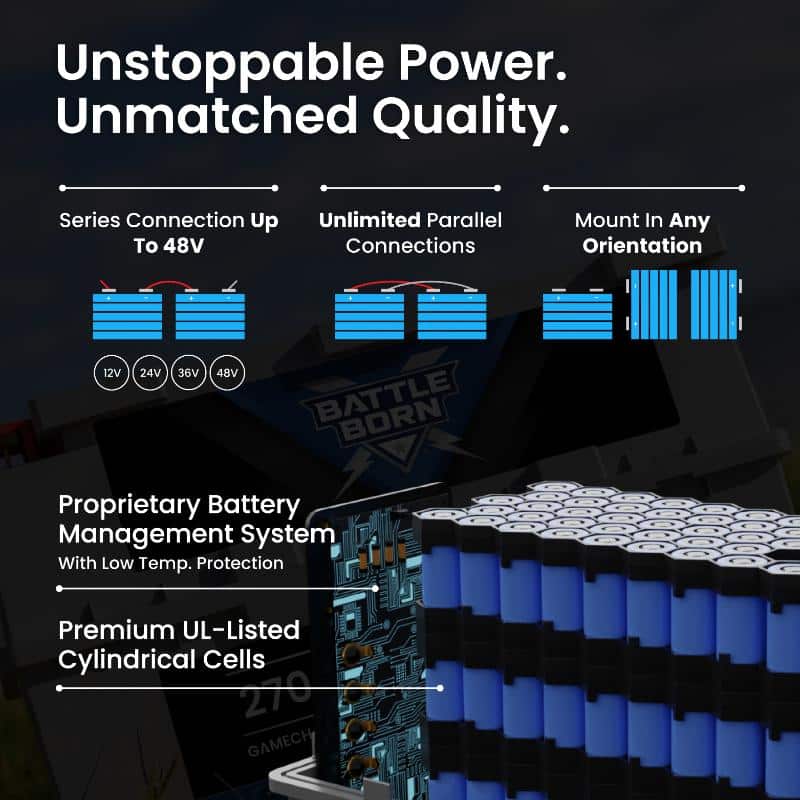

• Expandable System Design
  Supports series up to 48V and parallel configurations for scalable battery bank systems.
• Long Cycle Life
  Designed for 3,000 to 5,000 cycles, delivering years of dependable performance.
• Flexible Installation
  Can be mounted in multiple orientations for easier integration into custom battery compartments.

Specifications

Official Specification Sheet (PDF)
Official User Manual (PDF)
Mobile App User Guide (PDF)

Warranty
10-Year Limited Warranty

Battery Type
LiFePO4 (Lithium Iron Phosphate)

Rated Capacity
270Ah

Voltage
12V

Energy
3.456kWh

Cycle Life
3,000–5,000 cycles

Max Continuous Discharge
300A

Max Peak Discharge
500A (30 seconds)

Max Charge Current
135A

Charge Voltage
14.2V – 14.6V

Float Voltage
13.4V – 13.8V

Max Series Voltage
48V

Dimensions
22.83" L × 7.09" W × 13.15" H

Weight
80.8 lbs

Terminal Type
Brass flag terminals

Connectivity
Bluetooth, Wireless Mesh, Dragonfly IntelLigence®

Operating Temperature
Charge: 25°F to 135°F
Discharge: -4°F to 135°F
