Dakota Lithium 200W Flexible Marine Solar Panel Kit

Description

Take your boat, RV, truck, or trailer off the grid with the Dakota Lithium 200-Watt Flexible Marine Solar Panel Kit. Designed for rugged environments and long-term reliability, this flexible marine-grade solar solution provides dependable power for charging Dakota Lithium battery systems.

The semi-flexible panels conform to curved roofs and boat decks while remaining waterproof and durable for outdoor installations. With universal mounting hardware and quick-connect wiring included, installation is simple for marine, RV, and off-grid applications.

Best For

• RV and van life solar charging
• Marine and boat battery systems
• Off-grid camping and overlanding
• Rooftop solar on trucks, trailers, and campers
• Charging dual 12-volt battery banks up to 200Ah

Features

• Flexible Marine-Grade Solar Panels
  Semi-flexible panels designed to conform to curved roofs, boat decks, and uneven mounting surfaces.
• 200 Watts of Solar Power
  Two 100-watt panels generate up to 200 watts of solar output, producing about 11.2 amps of charging power under ideal conditions.
• Waterproof Marine Construction
  IP67 waterproof design built for boats, RV roofs, and outdoor environments.
• Easy Installation System
  Pre-assembled mounting hardware and wiring make installation simple for most surfaces.
• Lightweight & Durable Design
  Flexible panels weigh only about 5 lbs each, making them ideal for rooftops and curved installations.
• Designed for Lithium Battery Systems
  Optimized for Dakota Lithium batteries when paired with a lithium-compatible solar charge controller.

Specification

Warranty
25-Year Solar Panel Output Warranty

Max Power (Pmax)
200 watts total output (2 × 100W panels)

Current Output
11.2 amps peak power generation

Maximum Power Voltage
18 volts

Cable / Wiring
3-ft wire harness with waterproof MC4 connectors

Size
47.25 in × 21.25 in × 0.1 in per panel

Weight
5 lbs per panel

Waterproof Rating
IP67 marine-grade waterproof construction for boats, RVs, and outdoor installations.

Compatibility

Recommended Battery Systems

This 200W solar panel works well with:

• 12V 135Ah batteries
• 12V 200Ah batteries

Multiple panels can be combined for larger battery banks.

Charging Estimate

A 200W solar panel generates approximately 11 amps of charging current in ideal sunlight.

Estimated charging time:
Battery Ah ÷ 11 ≈ charging hours

Example:
• 100Ah battery ≈ ~9–10 hours of full sunlight
• 200Ah battery ≈ ~18–20 hours of full sunlight

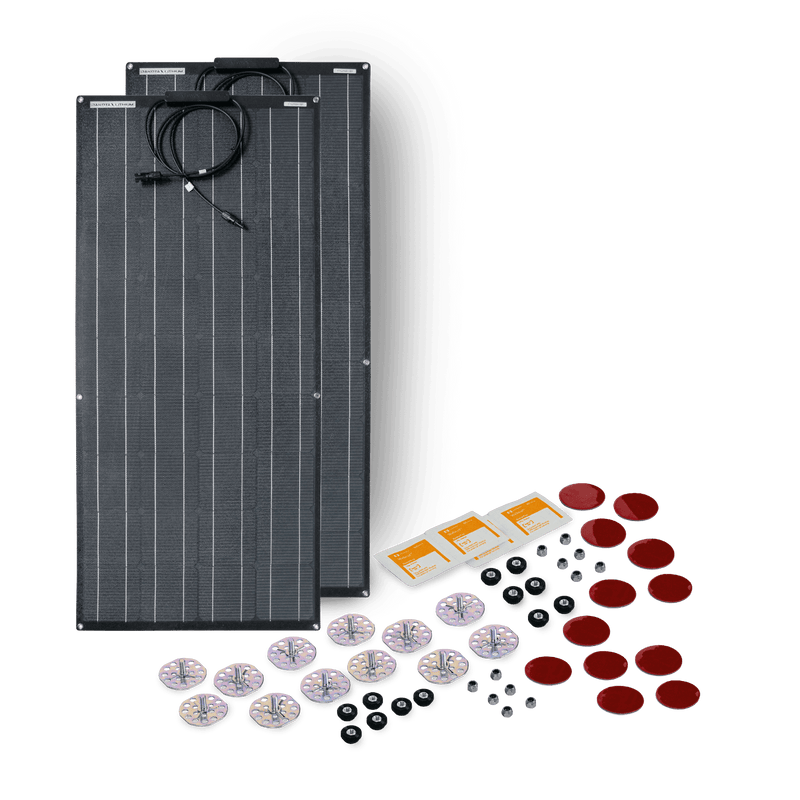

What's Included

• 2 × 100-Watt Dakota Lithium Flexible Solar Panels
• Waterproof quick-connect solar plug
• Stainless steel mounting hardware
• Double-sided industrial mounting tape
• Pre-installed wiring harness with MC4 connectors
