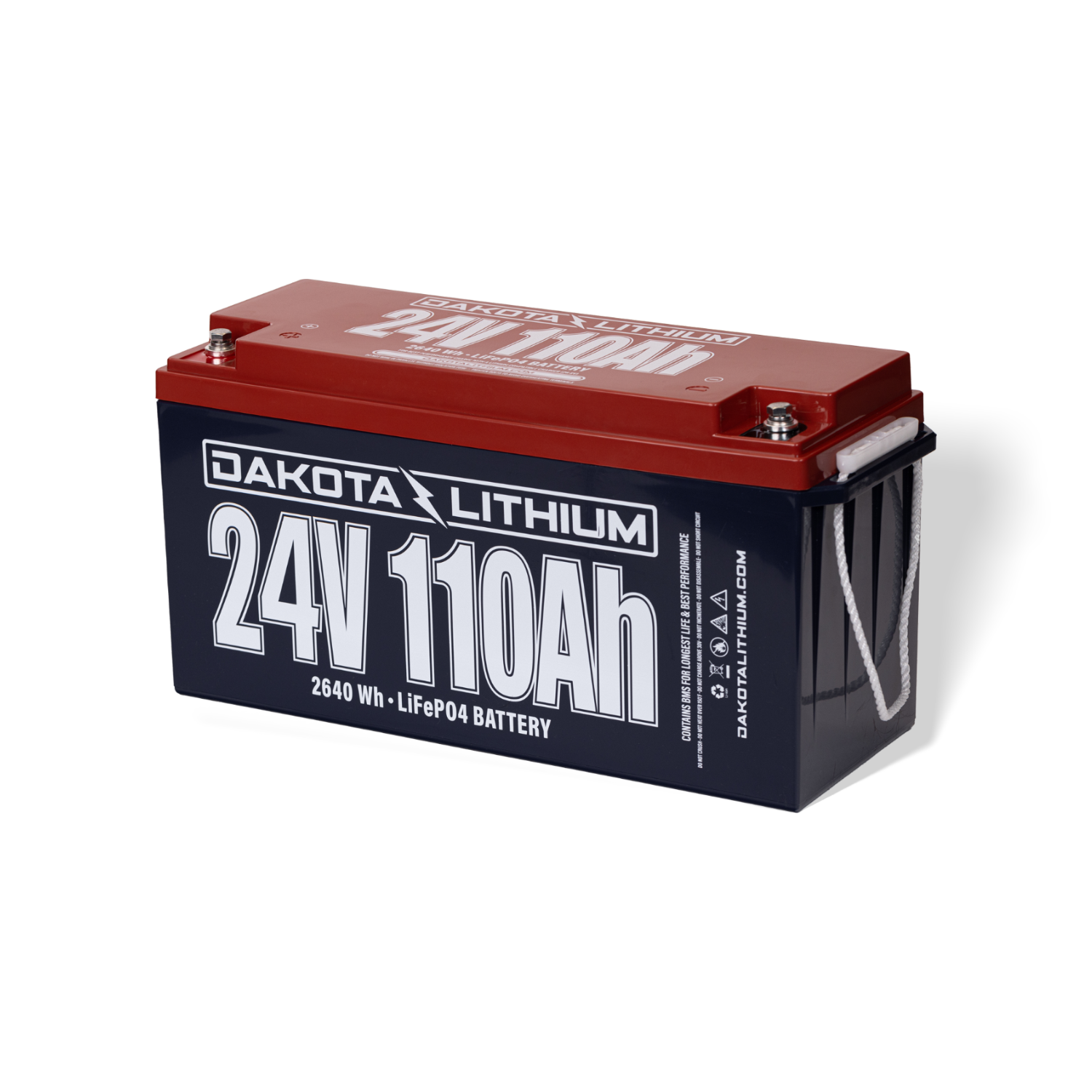

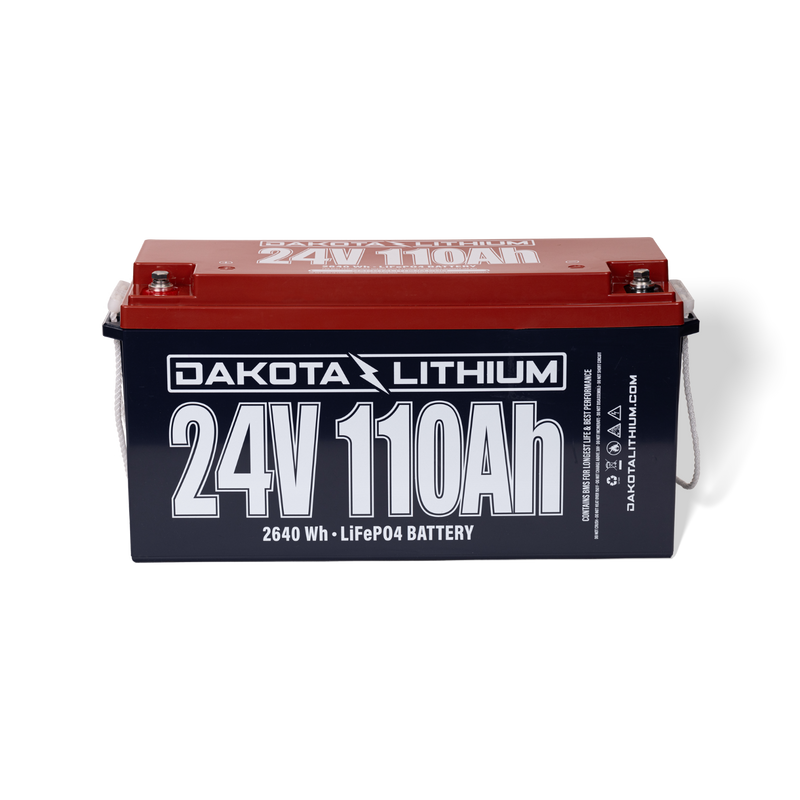

Dakota Lithium 24V 110Ah LiFePO4 Deep Cycle Battery

Description

The Dakota Lithium 24V 110Ah Deep Cycle LiFePO4 Battery delivers high-capacity lithium iron phosphate power for marine, RV, solar, and off-grid energy systems.

Built Dakota tough and engineered with advanced LiFePO4 technology, this battery provides three times the power, one-third the weight, and up to five times the lifespan of traditional lead-acid batteries. Designed for rugged environments and cold conditions, it delivers dependable performance with an impressive cycle life of 3,000–6,000 recharge cycles.

With 110Ah of capacity and 2816Wh of energy, this battery is ideal for long run times with 24V trolling motors or as part of a solar energy storage system for boats, RVs, homes, and off-grid installations.

Best for
• 24V trolling motor systems
• Marine and boating power systems
• Solar battery banks
• RV and van electrical systems
• Off-grid energy storage

Features

• High-Capacity Deep Cycle Power
  Provides 110Ah of lithium capacity and 2816Wh of energy, delivering long run times for trolling motors, solar storage systems, and other demanding electrical loads.
• Lightweight Lithium Design
  At only 50.5 lbs, this battery is approximately 70% lighter than comparable lead-acid batteries while delivering significantly more usable energy.
• Long Cycle Life
  Advanced LiFePO4 chemistry delivers up to 5,000 recharge cycles in recommended conditions, providing years of dependable performance.
• Built for Rugged Environments
  Engineered for harsh marine and off-grid conditions with excellent temperature tolerance and durable construction.
• Expandable System Capability
  24V batteries can be connected in series for up to 48V systems or used in parallel to expand total capacity for larger energy storage setups.

Specification

Dakota Lithium 24V 110Ah LiFePO4 Deep Cycle Battery User Manual (PDF)

Warranty
11-Year Manufacturer Warranty

Battery Type
Built-in Dakota Lithium LiFePO4 Battery

Rated Capacity
24V / 110Ah (2816Wh)

Voltage
24V rated (26.6V resting voltage). Dakota Lithium 24V batteries can be used in series for up to 48V systems.

Energy
2816Wh

Cycle Life
Up to 80% capacity for 5,000 cycles in recommended conditions.

Terminals
M8 bolt size (Max torque 15 ft-lbs)

Max Continuous Output
100A max continuous

Charging

• Max Charge Current
50A max

• Recommended Charge Voltage
28.8V recommended, 30V max. Charge with a LiFePO4 compatible charger.

• Operating Temperature
-4°F to 140°F (-20°C to 60°C). Avoid charging below 32°F (0°C)

Physical Specifications

• Weight
50.5 lbs (23 kg)

• Dimensions
19.1" L × 6.6" W × 9.9" H
(483mm × 170mm × 240mm)

Active BMS Protection
Includes cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection, and high temperature protection.

Certifications

UN 38.3 Certified
UL1642 Lithium Cells
IEC62133 Tested
ISO 9001:2015 Certified

Recommended Charger
24V 10A or 24V 20A LiFePO4 Charger (sold separately)
