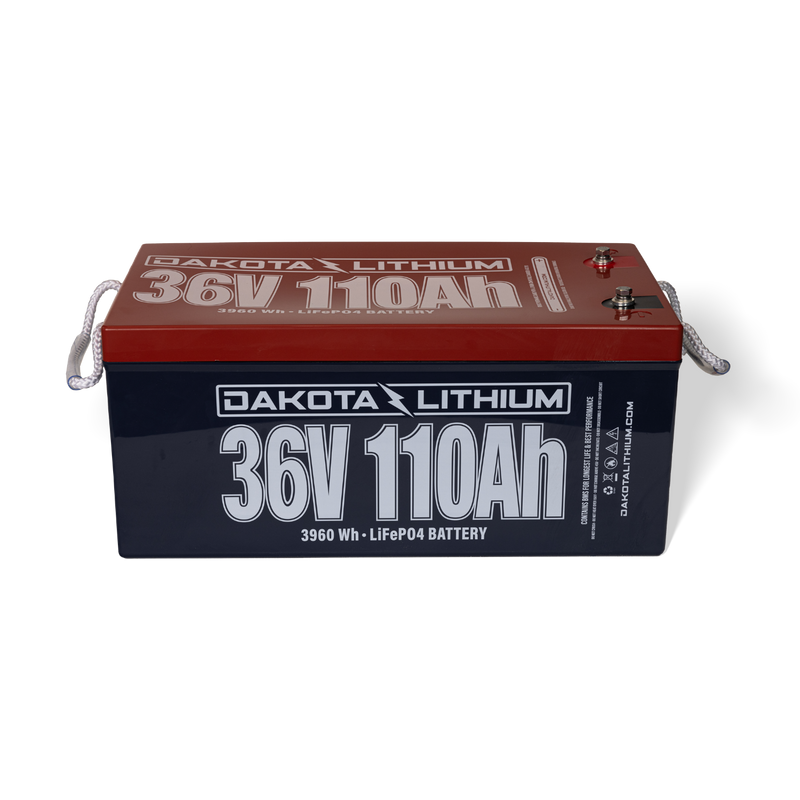

Dakota Lithium 36V 110Ah LiFePO4 Deep Cycle Battery

Description

The Dakota Lithium 36V 110Ah Deep Cycle LiFePO4 Battery delivers high-capacity lithium iron phosphate power for marine, golf cart, and deep cycle energy applications.

Built Dakota tough and engineered with advanced LiFePO4 technology, this battery provides three times the power, one-third the weight, and up to eight times the lifespan of traditional lead-acid batteries. Designed for rugged environments and demanding marine conditions, it delivers reliable performance with an impressive cycle life of up to 5,000 recharge cycles.

With 110Ah of capacity and 3960Wh of energy, this battery is ideal for 36V trolling motors, golf carts, and small electric vehicles that require long run times and dependable power. The battery combines the energy of three 12V batteries into a single compact system, eliminating series wiring and simplifying installation.

Best for
• 36V trolling motor systems
• Offshore and large fishing boats
• 36V golf carts and electric vehicles
• Marine deep cycle power systems
• High-capacity marine applications

Features

• High-Capacity Deep Cycle Power
  Provides 110Ah of lithium capacity and 3960Wh of energy for long run times in demanding marine and vehicle applications.
• Single Battery 36V System
  Combines the energy of three 12V batteries into one unit, eliminating complex series wiring.
• Lightweight Lithium Design
  At 75 lbs, this battery is significantly lighter than traditional lead-acid battery systems while delivering more usable power.
• Long Cycle Life
  Advanced LiFePO4 chemistry delivers up to 5,000 recharge cycles in recommended conditions for years of dependable performance.
• Built for Rugged Environments
  Designed for marine conditions, offshore boats, and demanding electric vehicle applications.

Specification

Dakota Lithium 36V 110Ah LiFePO4 Deep Cycle Battery User Manual (PDF)

Warranty
11-Year Manufacturer Warranty

Storage Capacity
110 ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 110 amp hours with a flat voltage discharge curve.

Voltage
36V (not intended for wiring multiple batteries in series, 36V systems only). Can be wired in parallel up to 10 units.

Energy
3960 Wh

Terminals
M8 bolt size (Max torque 15 ft-lbs)

Size
20.5" L × 10.5" W × 8.8" H
(521mm × 268mm × 224mm)

Weight
75 lbs (34 kg)

Cycle Life
Up to 80% capacity for 5,000 cycles in recommended conditions.

Operating Temperature

• Operating Temperature
-4°F to 140°F (-20°C to 60°C) optimal operating range. Avoid charging below 32°F (0°C)

Discharge

• Max Continuous Output
200A max continuous

• Peak Output
400A max (1 second pulse)

Charging

• Max Charge Current
60A max

• Recommended Charge Voltage
42V max recommended. Charge with a LiFePO4 compatible charger.

Active BMS Protection
Includes cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection, and high temperature protection.

Certifications

UN 38.3 Certified
UL1642 Lithium Cells
IEC62133 Tested
ISO 9001:2015 Certified

Recommended Charger

36V 8A LiFePO4 Charger (sold separately)
