Epoch 12V 460Ah LiFePO4 Battery – Heated, Bluetooth, Victron Comms (V2-T Elite Series)

Description

The Epoch 12V 460Ah V2-T Elite Series LiFePO4 Battery is a high-capacity lithium power solution engineered for demanding marine, RV, and off-grid systems. Built for advanced energy storage applications, it combines long runtime, smart system integration, and rugged durability in a premium Elite Series platform.

Designed for serious power needs, this battery features integrated Bluetooth monitoring, Victron communication compatibility, internal heating, and a user-serviceable 400A EATON Class T fuse for enhanced safety and system protection. Its sealed IP67 enclosure and advanced smart BMS make it a strong fit for harsh environments and large-scale energy systems.

With 460Ah of capacity and 5.89kWh of energy, the V2-T Elite Series is built for high-demand installations that require scalable performance, reliable charging control, and dependable operation in both mobile and stationary power systems.

Best For

• Marine and offshore electrical systems
• High-capacity RV and van power builds
• Off-grid cabins and energy storage systems
• Victron-integrated battery banks
• Large-scale expandable power systems

Features

• High-Capacity Energy Storage
  460Ah capacity (5.89kWh) designed for high-demand systems and extended runtime applications.
• Integrated 400A Class T Fuse (User Serviceable)
  EATON Class T fuse enhances safety, simplifies maintenance, and meets ABYC compliance standards.
• IP67 Waterproof & Dustproof Design
  Fully sealed enclosure protects against water, dust, and harsh outdoor environments.
• Internal Heating System
  Enables safe charging in cold-weather conditions and improves low-temperature performance.
• Bluetooth Monitoring
  Monitor battery status, voltage, and performance in real time via iOS and Android apps.
• Victron Communication Integration
  CAN bus communication enables seamless integration with Victron systems for advanced control.
• Expandable Power System
  Supports up to 4 batteries in series and up to 16 in parallel for scalable energy systems.
• Advanced Smart BMS Protection
  Integrated BMS provides protection against overcharge, over-discharge, short circuit, and temperature extremes.
• Distributed Charging Control (DVCC)
  Optimizes charging through Victron systems for efficient and automated power management.
• High Discharge Capability
  Supports up to 230A continuous discharge and up to 500A peak output.
• Extended Cycle Life
  4000+ cycles for long-term reliability and maintenance-free operation.
• Certified & Safe Internal Components
  Built with UL-certified cells and safety components for dependable performance.
• Rugged Off-Grid Design
  Engineered for marine, RV, and demanding off-grid environments.


Specifications

Official User Manual (PDF)

Warranty
11-Year Manufacturer Warranty

Battery Type
LiFePO4 Lithium Battery

Rated Capacity
460Ah (5.89kWh)

Voltage
12.8V nominal

Cycle Life
4000+ cycles

Max Continuous Discharge
230A

Max Peak Discharge
500A (30 seconds), 1300A (1 second)

Max Charge Current
210A  (THIS is different from V2)

Charge Voltage
14.2V

Float Voltage
13.5V

Operating Temperature
Charge: -30°C to 55°C (with heating)
Discharge: -20°C to 55°C

Storage Temperature
0°C to 35°C recommended

Terminals
M8 bolt

IP Rating
IP67

Dimensions
20.75" L × 8.5" W × 12" H

Weight
97 lbs

Connectivity
Bluetooth (iOS & Android), CANBUS (Victron Compatible)

Expandable Configuration
Max 4 in series / Max 16 in parallel

Protection
Overcharge, over-discharge, short circuit, overcurrent, high & low temperature protection

Certifications
UL1642, UL1973, UL9540A, IEC 62619, CE, RoHS, UN38.3

Recommended Charger
12V LiFePO4 compatible charger

Setup & System Integration

Firmware & Setup Instructions

Recommended Settings (Non-Victron Systems)
Absorption Voltage: 14.2V
Absorption Time: 15 minutes per battery
Float Voltage: 13.5V
Equalization: Off
Temperature Compensation: Disabled

Victron System Setup
Supports up to 16 batteries in parallel
CAN bus communication for full system integration
Connect via Cerbo GX / Ekrano GX
Enable DVCC and set controlling BMS to Epoch
System automatically manages charging profiles

Advanced System Integration

Daisy-chain communication via RJ45 cables between batteries
Compatible with Cerbo GX, Ekrano GX, and Cerbo GX Mk2
Set VE-CAN port speed to 500 KBPS LV
System automatically detects battery modules and total capacity

Firmware & Smart Features
Over-the-air firmware updates via app
Improved high-voltage alarm handling
Enhanced scalability for large battery banks

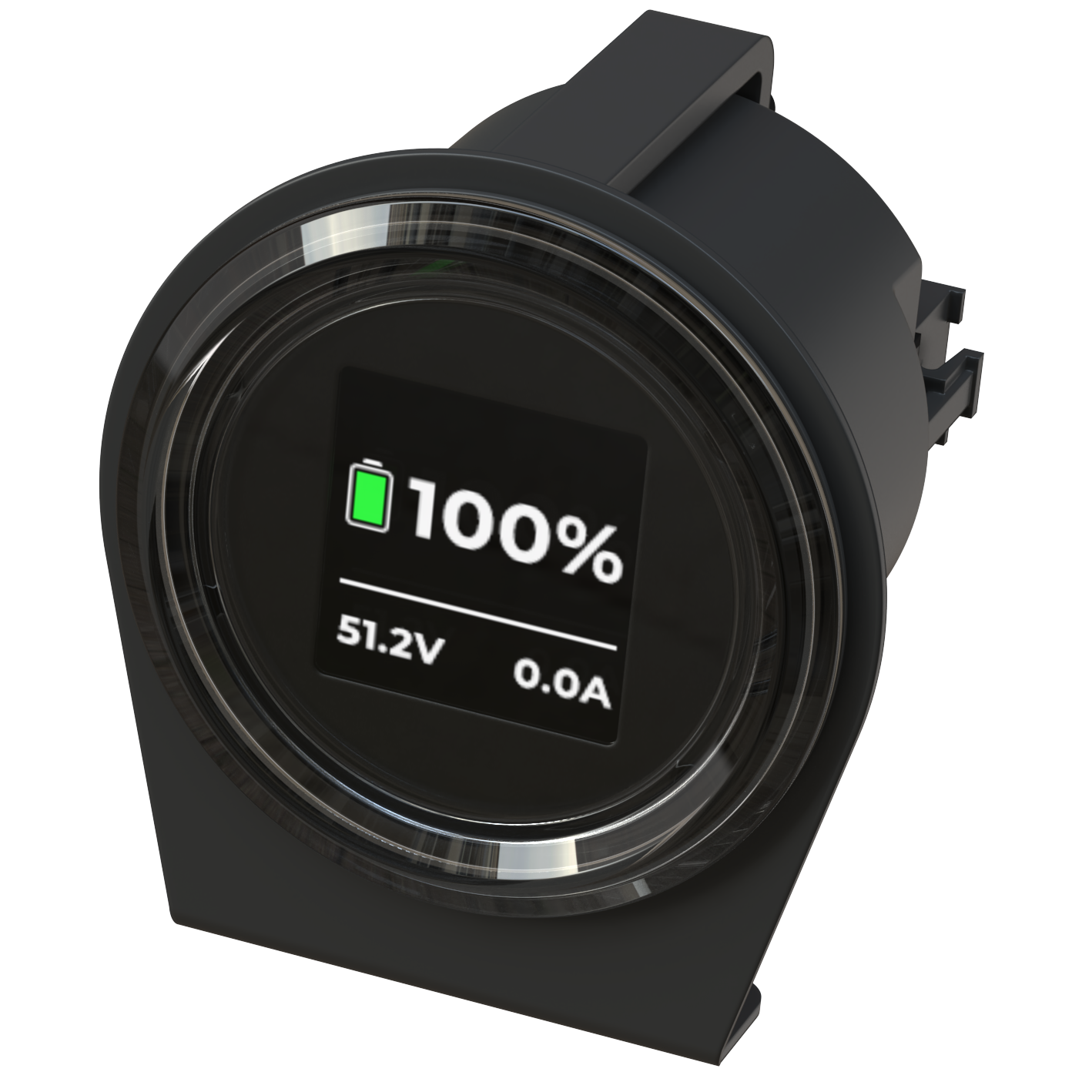

Full system monitoring through upgraded battery gauge
