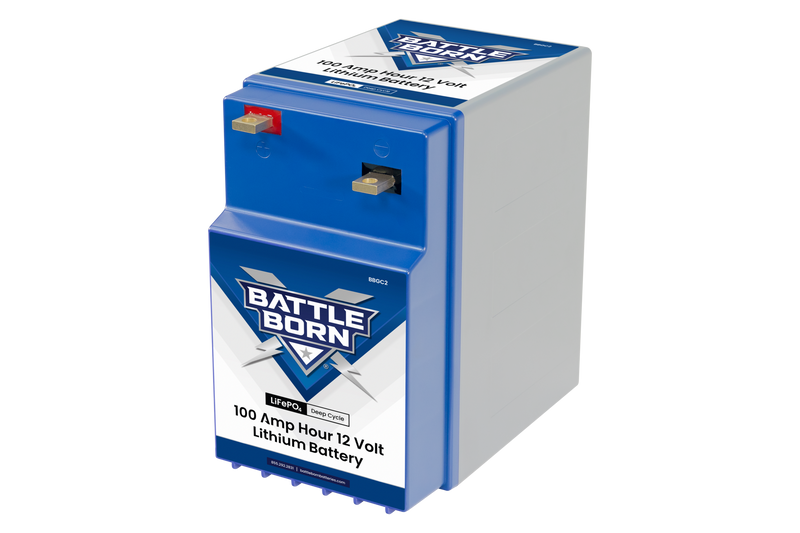

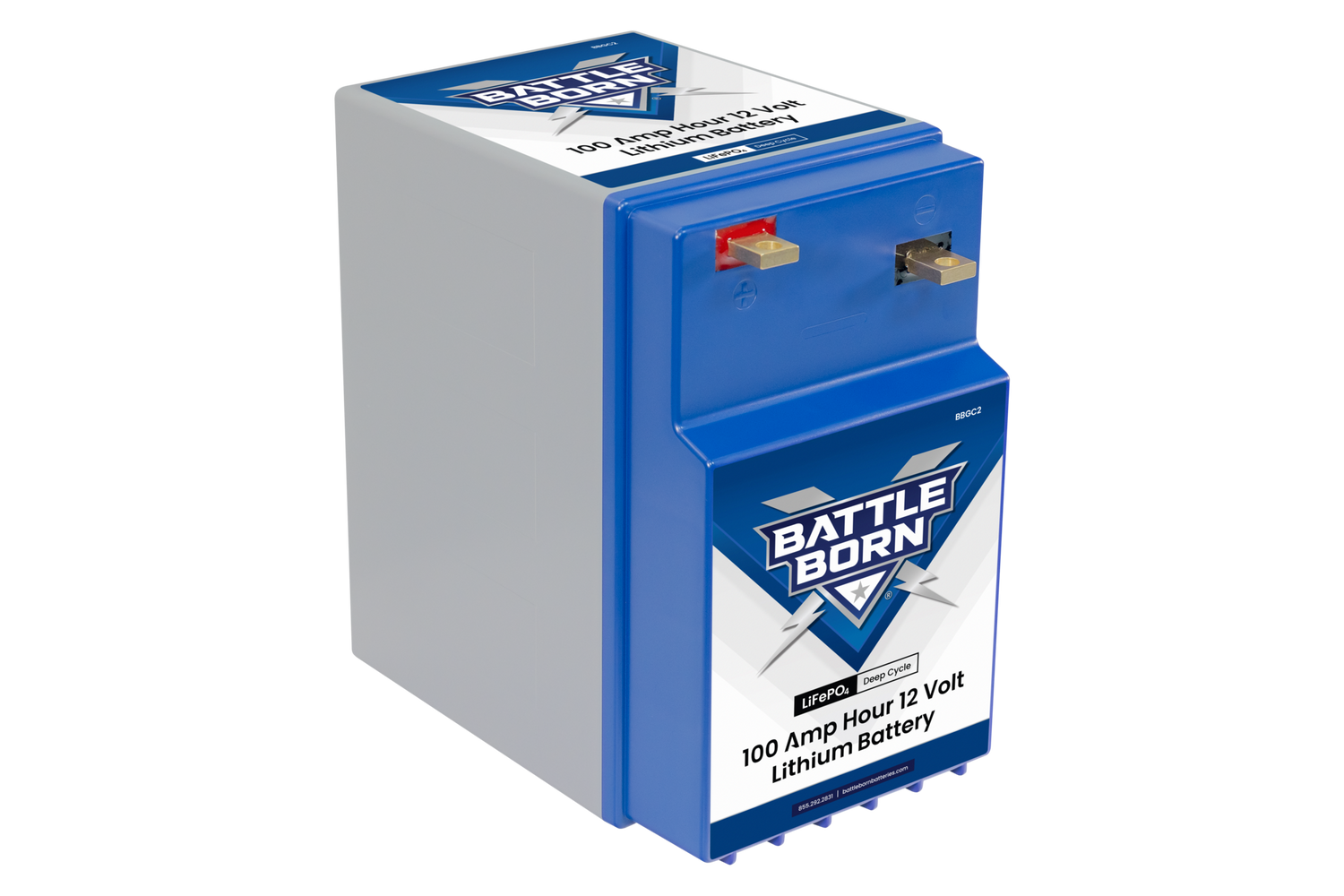

Battle Born 12V 100Ah GC2 LiFePO4 Battery

Description

The Battle Born 12V 100Ah GC2 LiFePO4 Battery delivers reliable lithium iron phosphate power in a GC2 form factor, making it an ideal upgrade for golf cart batteries, RV systems, marine applications, and off-grid energy setups. Designed for real-world performance, it provides consistent, long-lasting power with significantly reduced weight compared to traditional lead-acid batteries.

Built with safe and non-toxic LiFePO4 chemistry, this battery supports deep cycle use with 100% usable capacity and long service life. It is engineered for dependable performance across a wide range of applications, from mobile power systems to stationary energy storage.

Providing 100Ah (1.28kWh) of usable energy, this battery supports scalable system configurations through series and parallel connections, allowing flexibility for both small and large power systems.

This battery is designed as a drop-in replacement for GC2 systems. Ensure your charging profile is configured for LiFePO4 and your system wiring matches your voltage and capacity requirements.

Best For

• Golf carts and GC2 battery replacements
• RV and van life power systems
• Marine and coastal applications
• Off-grid cabins and remote setups
• Solar energy storage systems

Features

• GC2 Form Factor
  Designed to replace traditional GC2 lead-acid batteries, making it ideal for golf carts, RVs, and marine systems.
• Deep Cycle LiFePO4 Performance
  Provides 100Ah (1.28kWh) of usable energy for consistent, long-lasting power in demanding applications.
• Advanced Battery Management System (BMS)
  Protects against overcharge, over-discharge, short circuit, and temperature extremes.

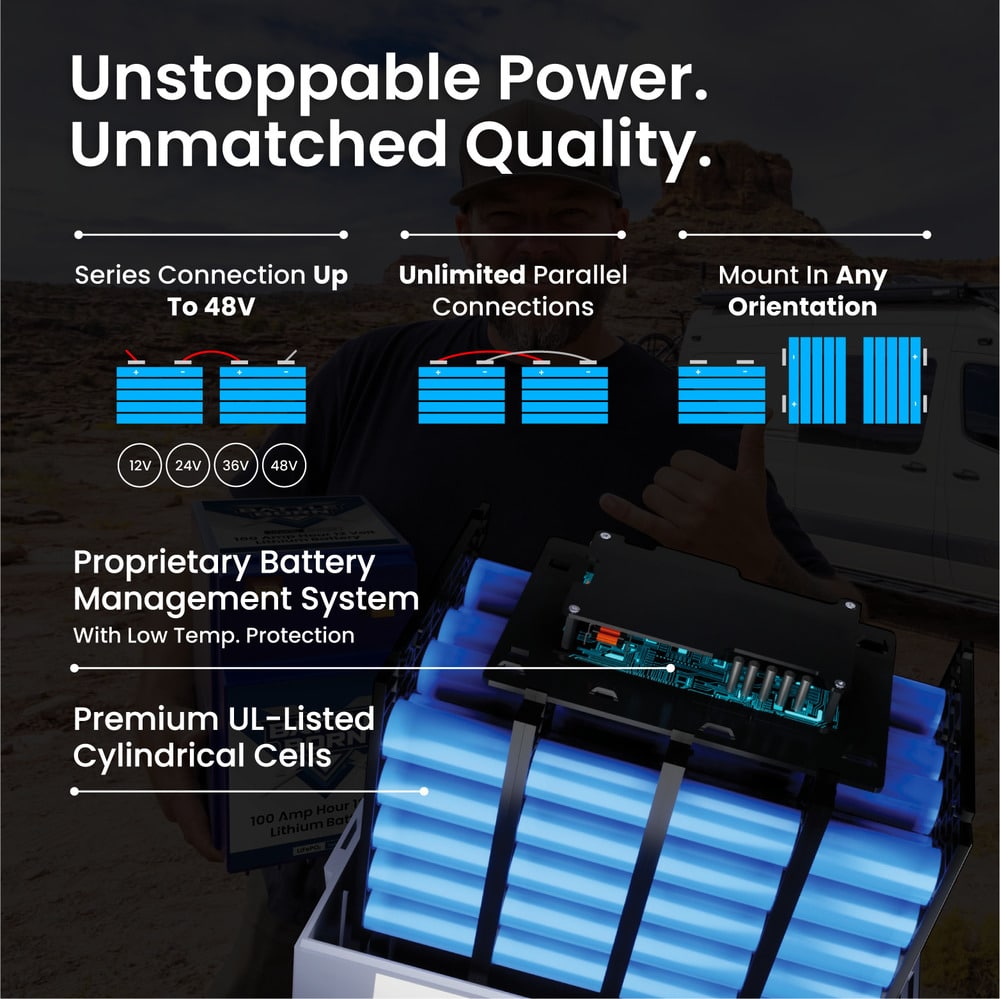

• Expandable System Capability
  Supports series and parallel configurations, allowing scalable energy storage systems up to 48V and beyond.
• Long Cycle Life
  Designed for 3,000–5,000 deep discharge cycles for long-term reliability.
• Lightweight Lithium Upgrade
  Significantly lighter than traditional lead-acid batteries while delivering higher usable capacity.
• Flexible Installation
  Can be mounted in multiple orientations and integrated into a wide range of system layouts.

Specifications

Official Specification Sheet (PDF)
Official User Manual (PDF)

Warranty
10-Year Limited Warranty

Battery Type
LiFePO4 Lithium Iron Phosphate

Rated Capacity
100Ah (1.28kWh)

Voltage
12V

Cycle Life
3,000–5,000 cycles

Max Continuous Discharge
100A

Max Peak Discharge
200A (30 seconds)

Charge Voltage
14.2V – 14.6V

Float Voltage
13.4V – 13.8V

Operating Temperature
Discharge: -4°F to 135°F (-20°C to 57.2°C)

Dimensions
10.31" L × 7.28" W × 11.02" H

Weight
31 lbs

Terminals
Brass flag terminals

Expandable Configuration
Series up to 48V / Parallel supported

Protection
Overcharge, over-discharge, short circuit, and temperature protection

GC2 vs Group 27 vs Group 31 Batteries

Why Choose GC2?

• Optimized for scalable battery banks in 24V and 48V RV and off-grid systems
• Vertical form factor allows efficient use of space in battery compartments
• Ideal for building higher-capacity systems with multiple batteries
• Well-suited for marine and mobile power applications requiring reliable deep cycle performance
