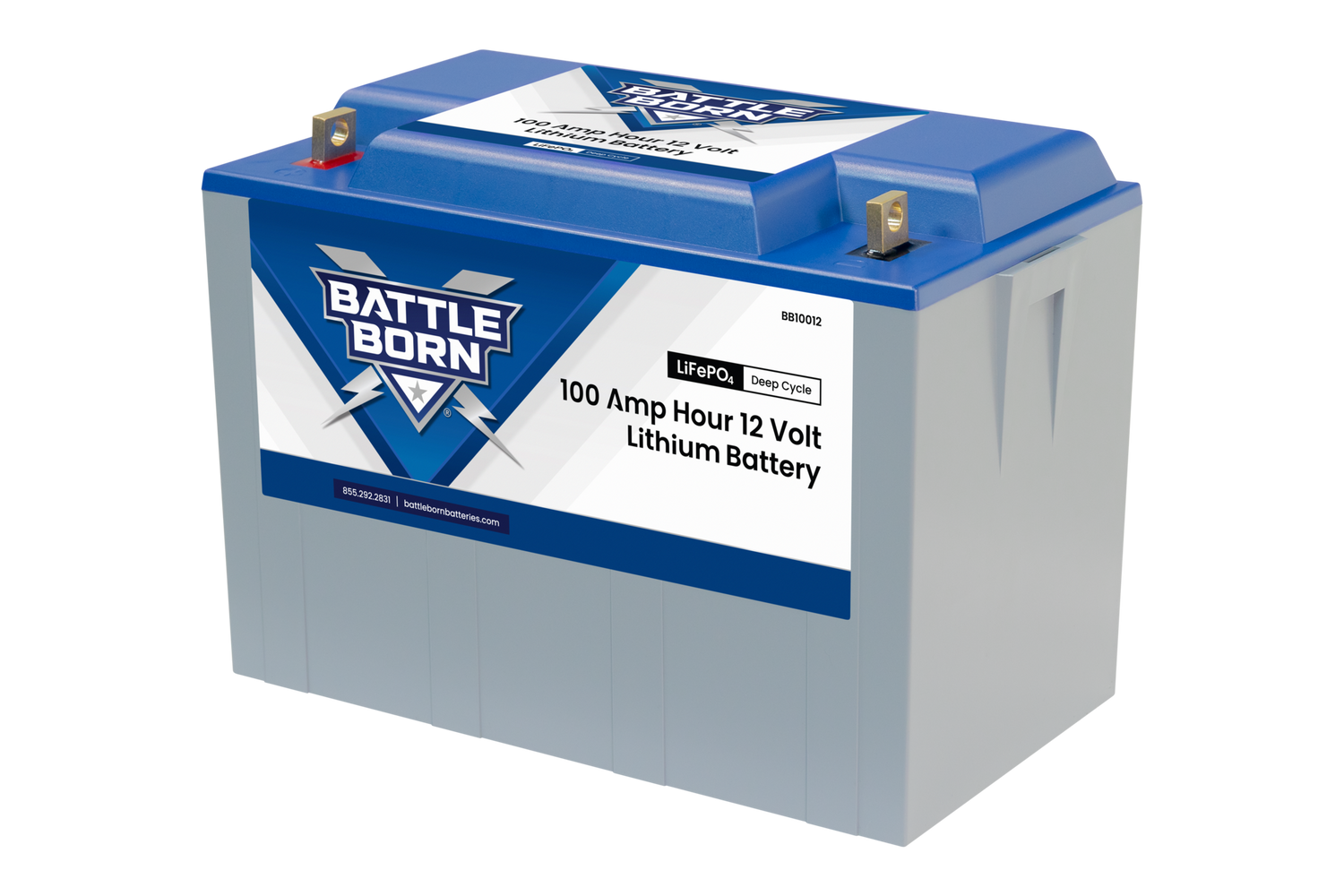

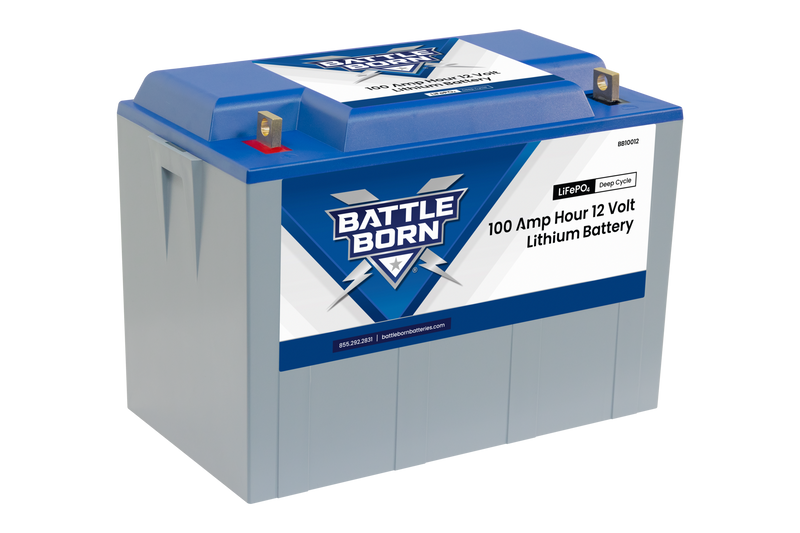

Battle Born 12V 100Ah LiFePO4 Battery

Description

The Battle Born 12V 100Ah LiFePO4 Deep Cycle Battery delivers reliable lithium iron phosphate power for RV, marine, off-grid, and backup energy systems. As Battle Born’s flagship model, it is designed as a drop-in replacement for Group 27 and Group 31 batteries while providing lightweight, maintenance-free performance.

Built with lithium iron phosphate (LiFePO4) chemistry, this battery provides 100Ah of usable power in a durable 12V platform. It is designed for versatile installation, with the ability to be wired in series or parallel and mounted in any orientation.

With 100Ah of capacity and 100% usable depth of discharge, this battery is built for deep cycle applications and long-term system reliability.

Best For

• RV and camper van power systems
• Marine and trolling motor applications
• Off-grid solar and backup power setups
• Industrial and commercial energy applications
• Users upgrading from Group 27 or Group 31 lead-acid batteries

Features

• 100Ah Usable Deep Cycle Capacity
  Delivers a full 100Ah of usable power with 100% depth of discharge for dependable runtime.
• Drop-In Group 27 & Group 31 Replacement
  Designed to fit standard Group 27 and Group 31 battery dimensions for straightforward upgrades.

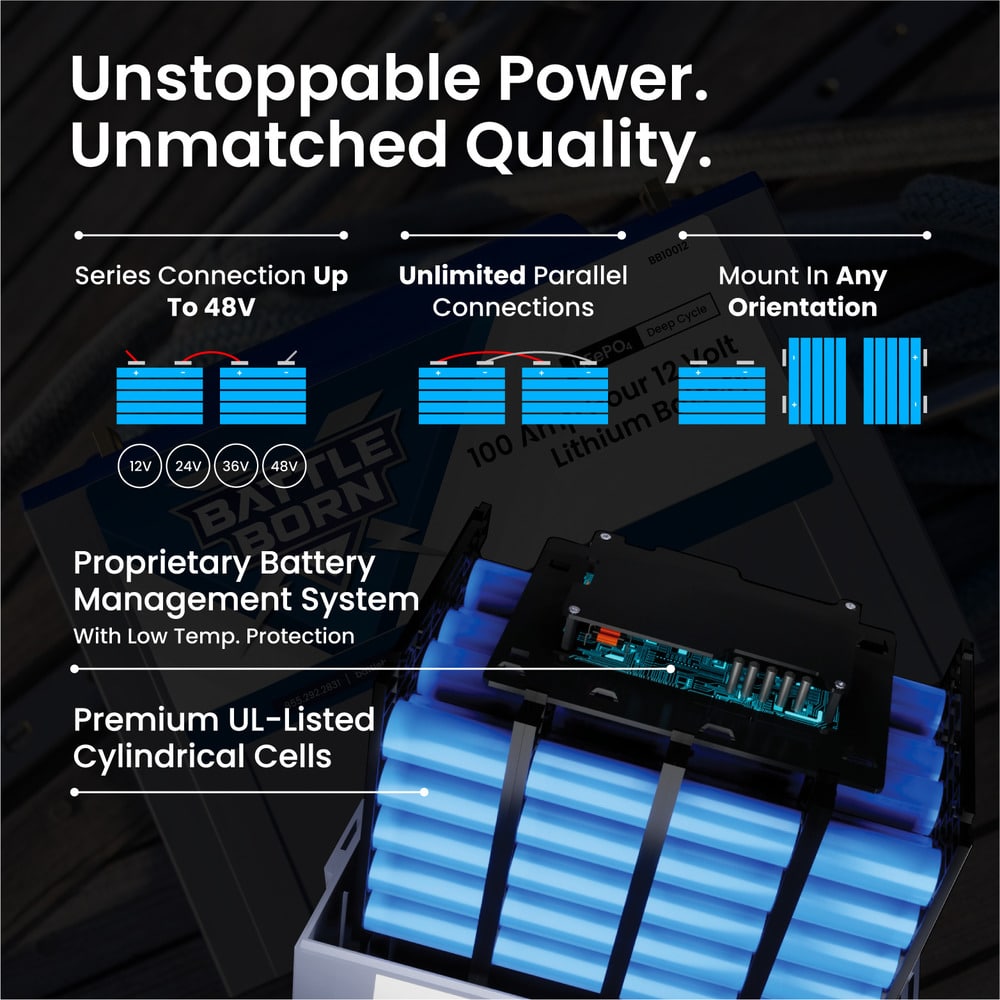

• Versatile Installation
  Can be wired in series or parallel and mounted in any orientation to support a wide range of system layouts.
• LiFePO4 Battery Chemistry
  Uses lithium iron phosphate chemistry for stable, maintenance-free, long-lasting performance.
• Built-In Battery Management System (BMS)
  Provides protection for low temperature, high and low voltage, short circuits, and more.
• Lightweight & Durable Design
  Weighs only 31 lbs while delivering 100Ah of usable power.
• Long Cycle Life
  Rated for 3,000–5,000 deep discharge cycles and designed for up to 10–15 years of service.

Specifications

Official Specification Sheet (PDF)
Official User Manual (PDF)

Warranty
10-Year Limited Warranty

Battery Type
LiFePO4 lithium iron phosphate

Rated Capacity
100Ah

Voltage
12V

Lead-Acid Equivalent
200Ah PbEq

Cycle Life
3,000–5,000 cycles

Usable Depth of Discharge
100%

Self Discharge
2–3% per month

Maximum Series Voltage
48V

Charge Voltage
14.2 – 14.6V

Float Voltage
13.4 – 13.8V

Resistance
7 mΩ

Dimensions
12.76" L × 6.86" W × 8.95" H

Weight
31 lbs

Fitment
Fits standard Group 27 & Group 31 battery dimensions

Mounting
May be mounted in any orientation

Protection
Built-in BMS with low temperature protection, high and low voltage protection, and short circuit protection

Included Hardware
18-8 stainless steel 5/16 – 18 1" and 1-1/4" bolts, brass washers, and 18-8 stainless steel nuts with nylon inserts

Important Note
A CSL is required for use with inverters 3500W or higher.
