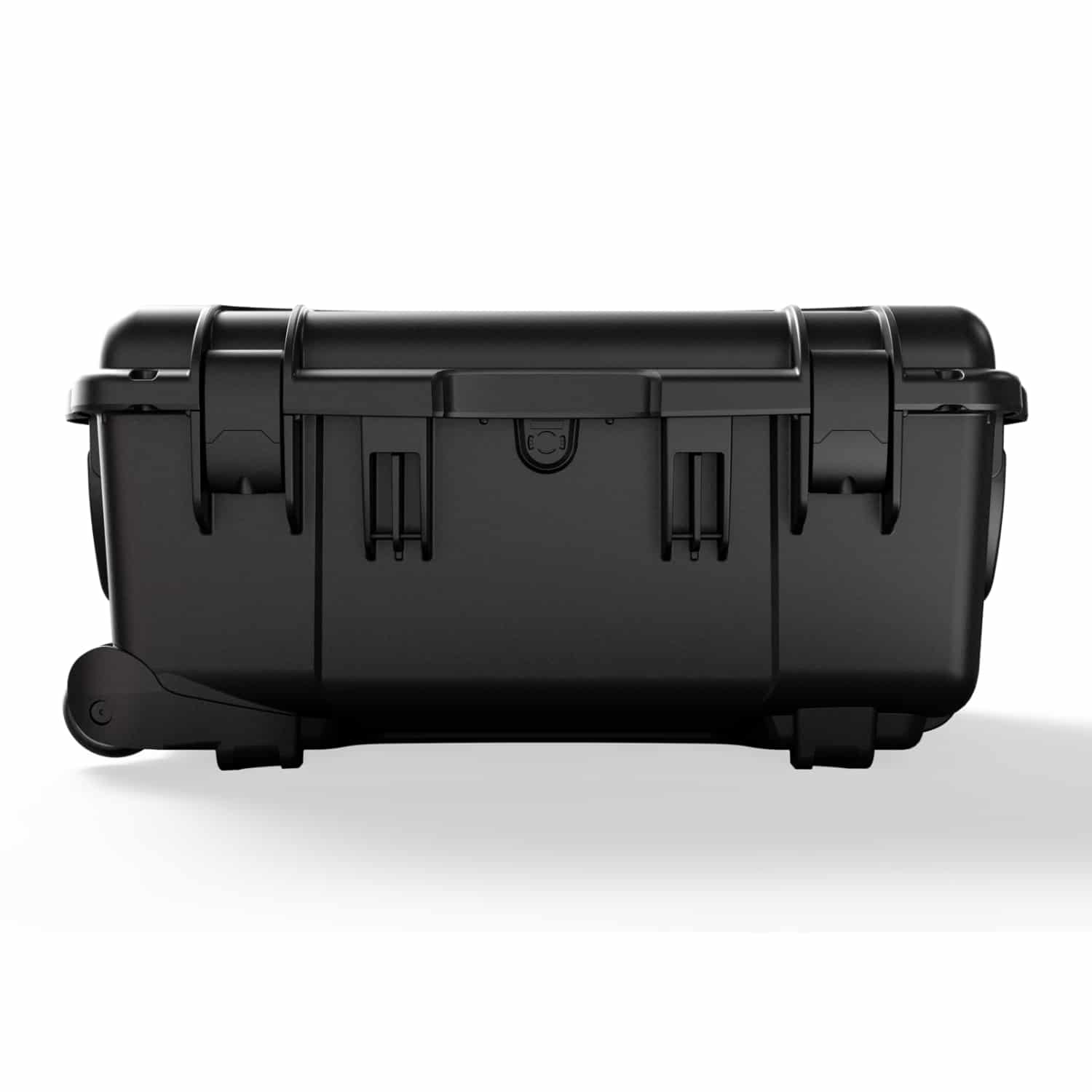

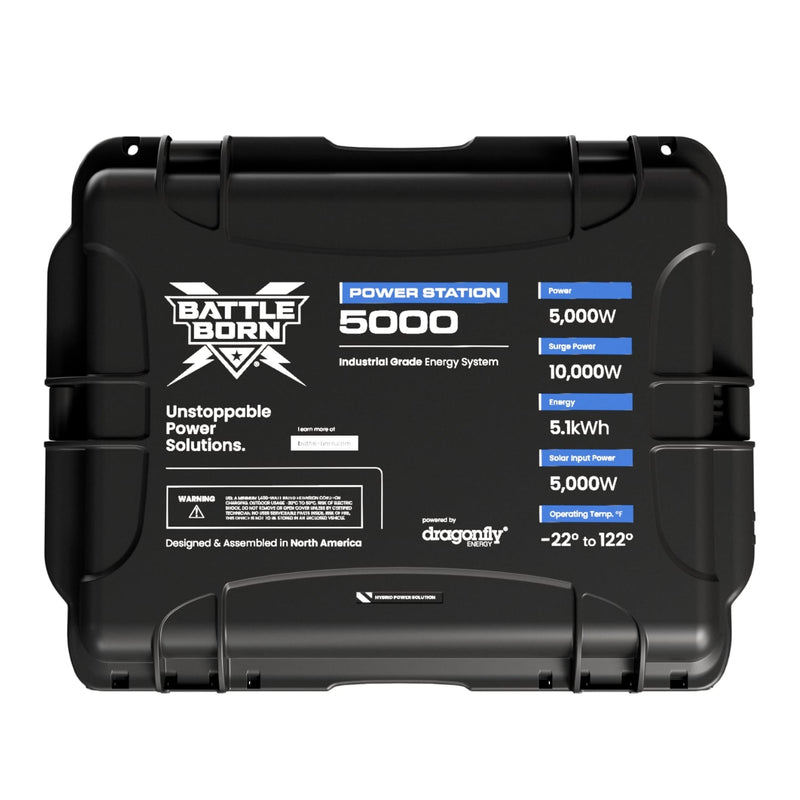

Battle Born Power Station 5000

Description

The Battle Born Power Station Pro 5000 is a high-capacity, industrial-grade portable energy system designed for demanding off-grid use, mobile operations, and reliable backup power.

With 5,000W of continuous pure sine wave output and 5.1kWh of LiFePO4 energy storage, it delivers clean, stable power for high-demand tools, appliances, and sensitive electronics. Built for serious performance, it supports larger loads and extended runtimes in both field and work environments.

Engineered for durability, it features integrated heating, weather-sealed construction, and flexible charging from solar, vehicle, or grid power. Designed to perform in extreme conditions, it provides dependable, maintenance-free power wherever it’s needed.

Best For:

• Mobile jobsites and field operations
• Off-grid work and remote deployments
• Emergency backup power
• Service vehicles and industrial applications
• Running high-demand tools and appliances

Features

• 5,000W Pure Sine Wave Output
  Delivers clean, stable AC power for high-demand equipment and sensitive electronics.
• 5.1kWh LiFePO4 Energy Storage
  High-capacity lithium system rated for 3,500+ cycles with long-term reliability.
• Integrated Heating System
  Maintains performance in extreme cold, supporting operation down to -22°F.
• Three-Way Charging Capability
  Recharge via solar, vehicle alternator, or grid power for flexible off-grid use.
• Weather-Sealed & Dust-Resistant Design
  Protects internal components from harsh environments including dust, debris, and moisture.
• Industrial-Grade Construction
  Built for demanding applications with durable housing and rugged design.
• Generator Auto-Start Support
  Compatible with two-wire auto-start generators for automated backup charging.
• Assembled in North America
  Built and tested to meet strict safety and performance standards.

Specifications

Official Specification Sheet (PDF)

Warranty
30-Month Warranty

Battery Type
LiFePO4 (Lithium Iron Phosphate)

Energy Storage
5.1kWh

Power Output
5,000W continuous

Surge Power
7,000W (500ms), 10,000W (10ms)

Cycle Life
3,500+ cycles

AC Output
120V AC

Frequency
60Hz

Solar Input Power
5,500W

Solar Input Voltage Range
140–320V DC

Max Solar Amperage
40A

Alternator Input
30A

Grid Charging Power
1,400W

Bypass Power
1,200W

Sine Wave Output
Pure sine wave

Operating Temperature
-22°F to 122°F (-30°C to 50°C)

Storage Temperature
-22°F to 122°F (-30°C to 50°C)

Recharge Time
Grid: ~4.5 hours
Solar: ~1 hour (max input)

Idle Power Consumption
70W

Output Efficiency
>90%

Dimensions
25.6" L × 20" W × 11.8" H

Weight
132 lbs

Certifications
UL9540A, UL1642, UL1741, CE

Safety Protections
Overload, short circuit, surge, reverse polarity, and over-temperature protection

Origin
Assembled in North America

Power Station 3000 vs Power Station Pro 5000

Which One Should You Choose?

• Power Station 3000 – Ideal for portable power, RV use, and everyday backup needs where mobility and simplicity matter.
• Power Station Pro 5000 – Built for high-demand applications, extended runtime, and powering larger tools or equipment in off-grid environments.
• If portability and lighter weight matter, the 3000 is the better fit.
• If you need maximum power and longer runtime, the Pro 5000 is the better choice.

What's Included

• Battle Born Power Station Pro 5000
• Alternator/Solar connecting adapter

Includes components required for vehicle or solar charging connection.
