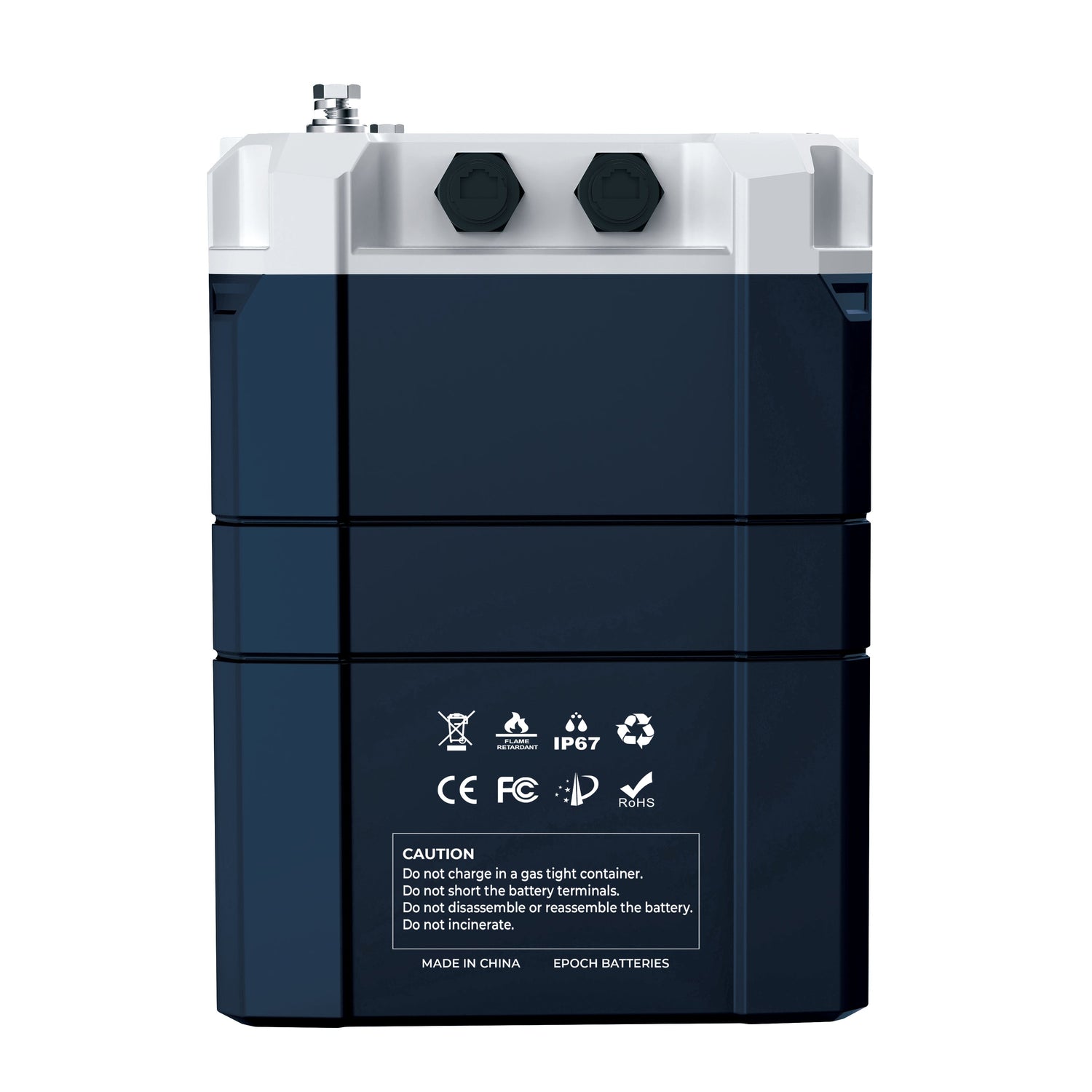

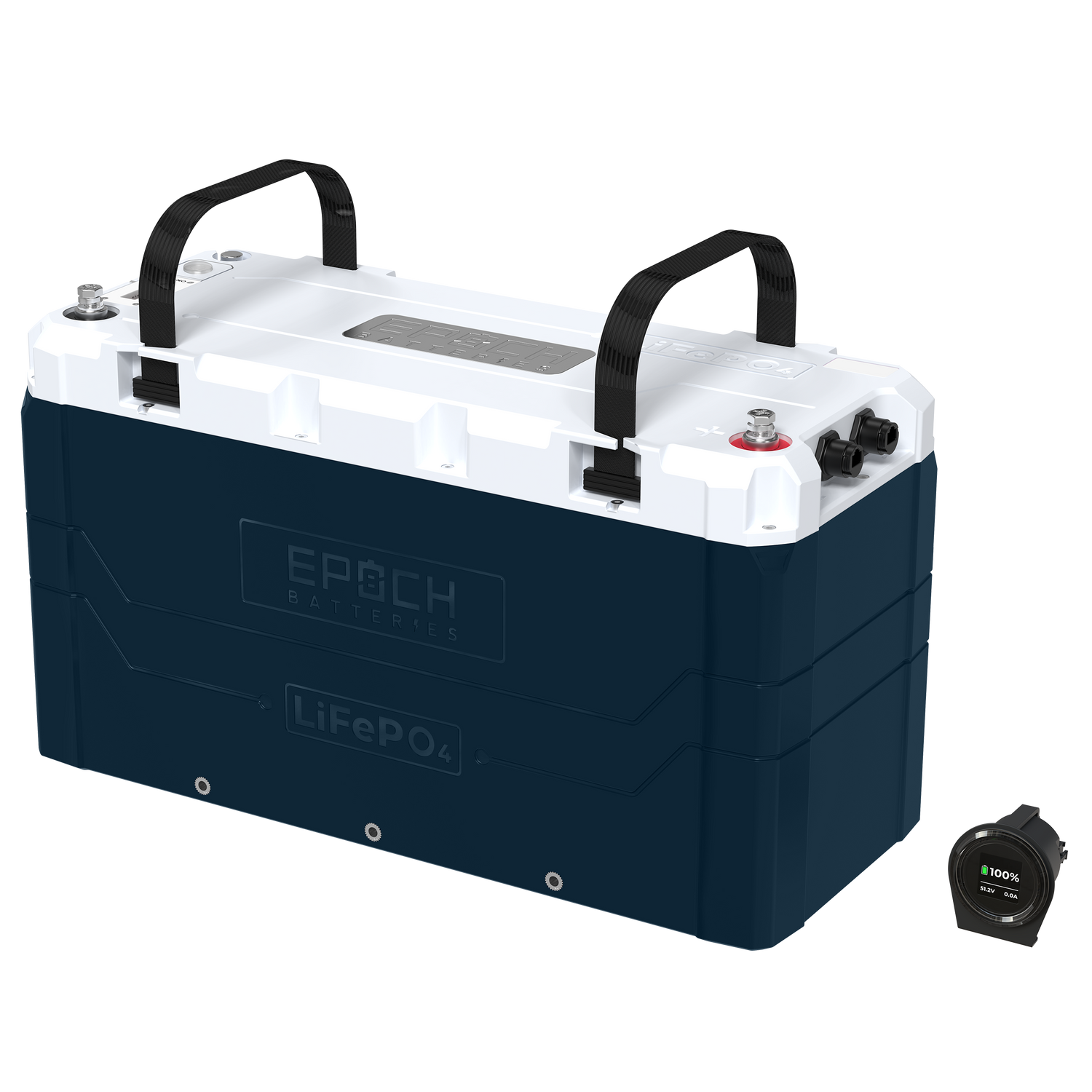

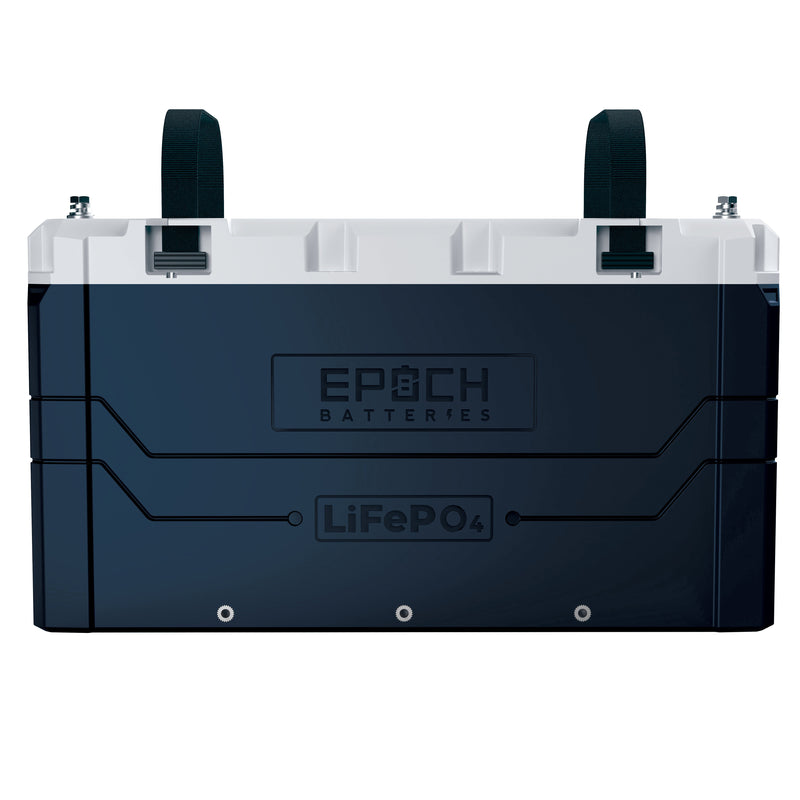

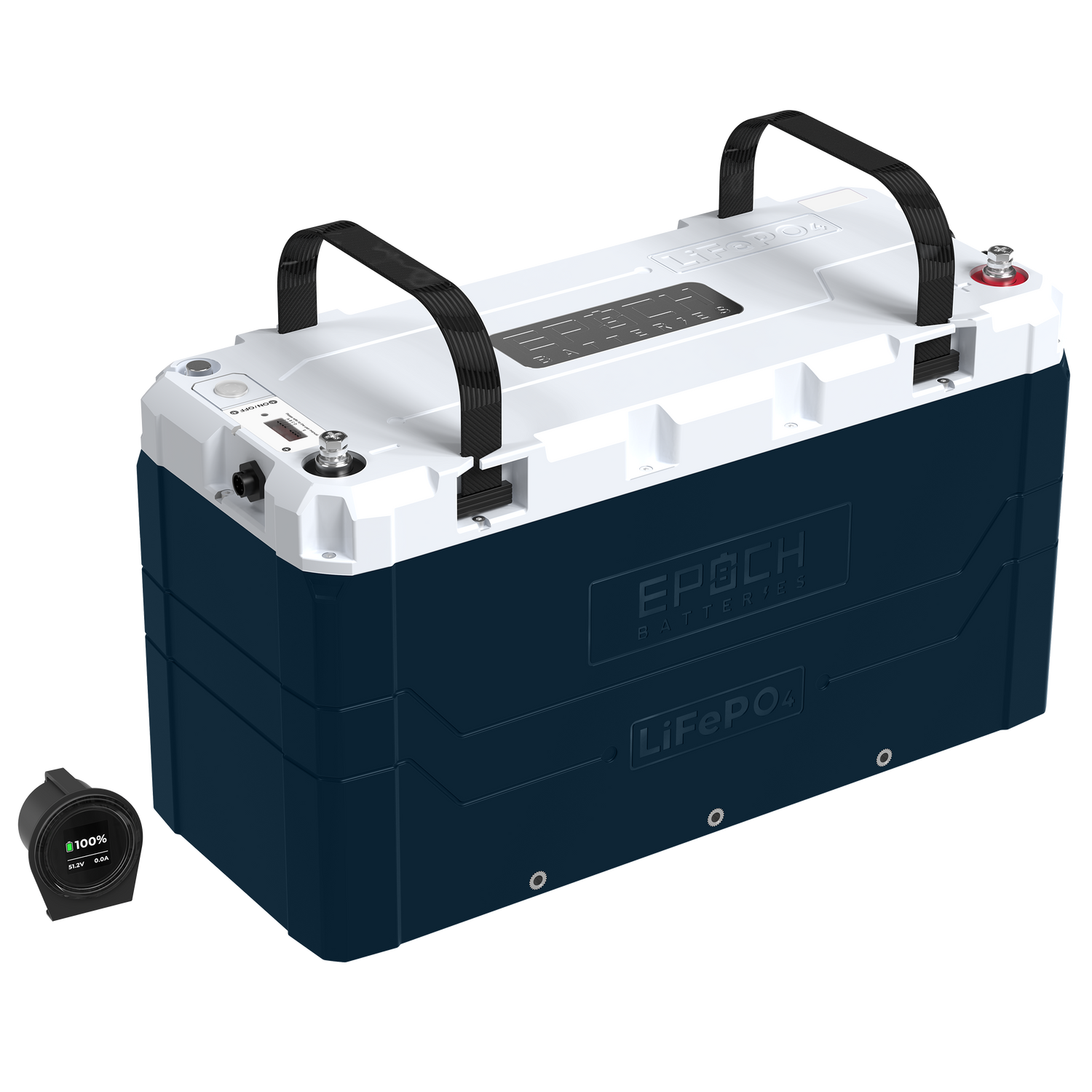

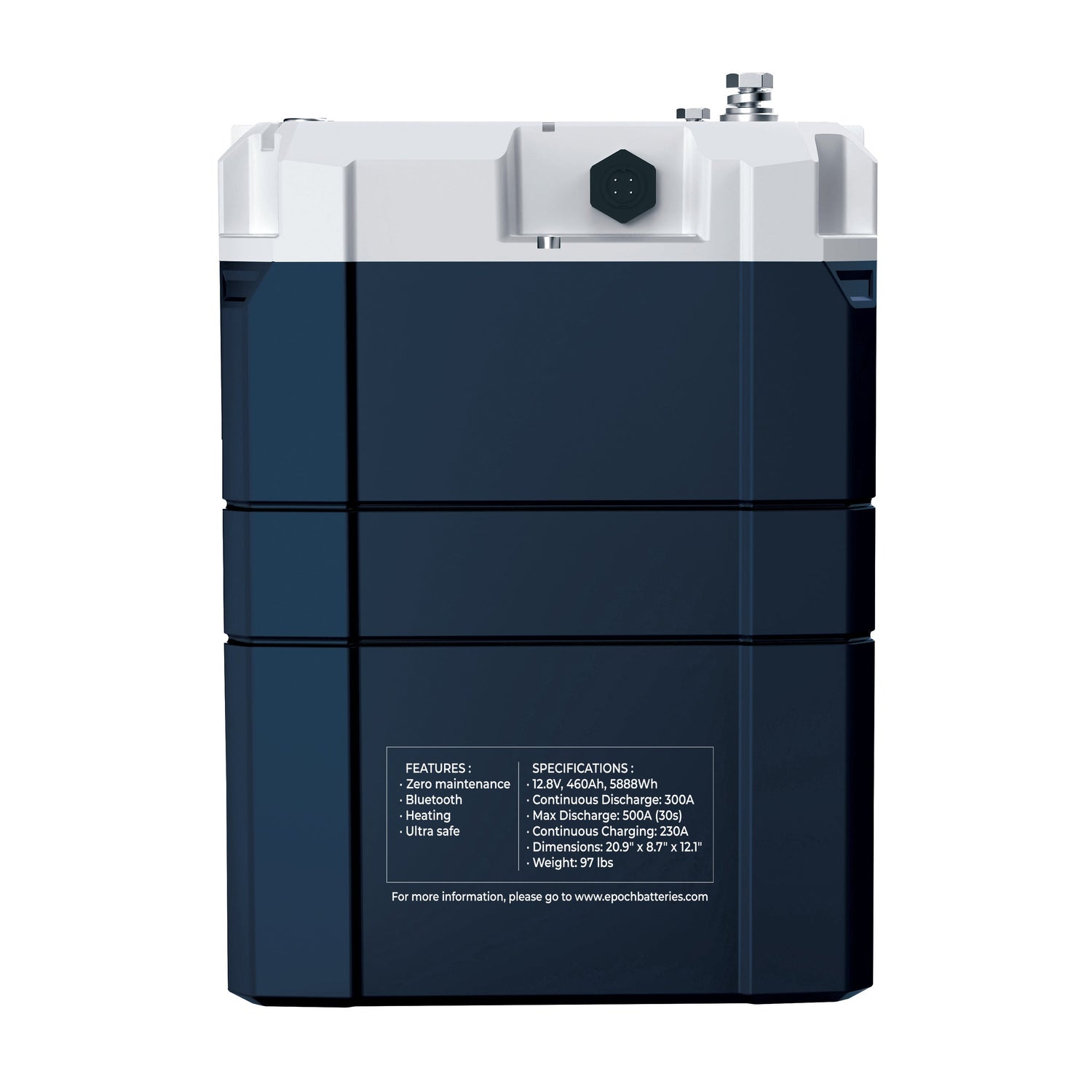

Epoch 12V 460Ah LiFePO4 Battery – Heated, Bluetooth, Victron Comms (V2 Elite Series)

Description

The 12V 460Ah V2 Elite Series LiFePO4 Battery is a high-capacity, marine-grade power solution engineered for demanding RV, marine, and off-grid energy systems. Built with advanced lithium iron phosphate (LiFePO4) chemistry, integrated heating, and full Victron communication capability, this battery delivers reliable performance in both extreme environments and large-scale installations.

Designed for serious energy needs, this battery offers massive 5.89kWh capacity, high discharge output, and seamless system integration. With IP67 waterproof protection, advanced BMS safety systems, and scalable parallel capability, it is built to perform where consistency, durability, and control matter most.

Whether you're powering a fully built van system, upgrading a marine electrical setup, or designing a scalable off-grid power system, the V2 Elite Series provides dependable, expandable energy with smart monitoring and control.

Best For

• High-Capacity RV & Van Life Electrical Systems

• Marine House Battery & Coastal Power Setups

• Off-Grid Cabins & Scalable Energy Storage Systems

• Backup Power & Large Mobile Energy Systems

Features

• High-Capacity Energy Storage
  460Ah capacity (5.89kWh) designed for high-demand systems and extended runtime applications.
• IP67 Waterproof & Dustproof Design
  Fully sealed enclosure protects against water, dust, and harsh outdoor environments.
• Internal Heating System
  Enables safe charging in cold-weather conditions and improves low-temperature performance.
• Bluetooth Monitoring
  Monitor battery status, voltage, and performance in real time via iOS and Android apps.
• Victron Communication Integration
  CAN bus communication enables seamless integration with Victron systems for advanced control.
• Expandable Power System
  Supports up to 4 batteries in series and up to 16 in parallel for scalable energy systems.
• Advanced Smart BMS Protection
  Integrated BMS provides protection against overcharge, over-discharge, short circuit, and temperature extremes.
• Over-the-Air Firmware Updates
  Update battery management system firmware directly through the mobile app.

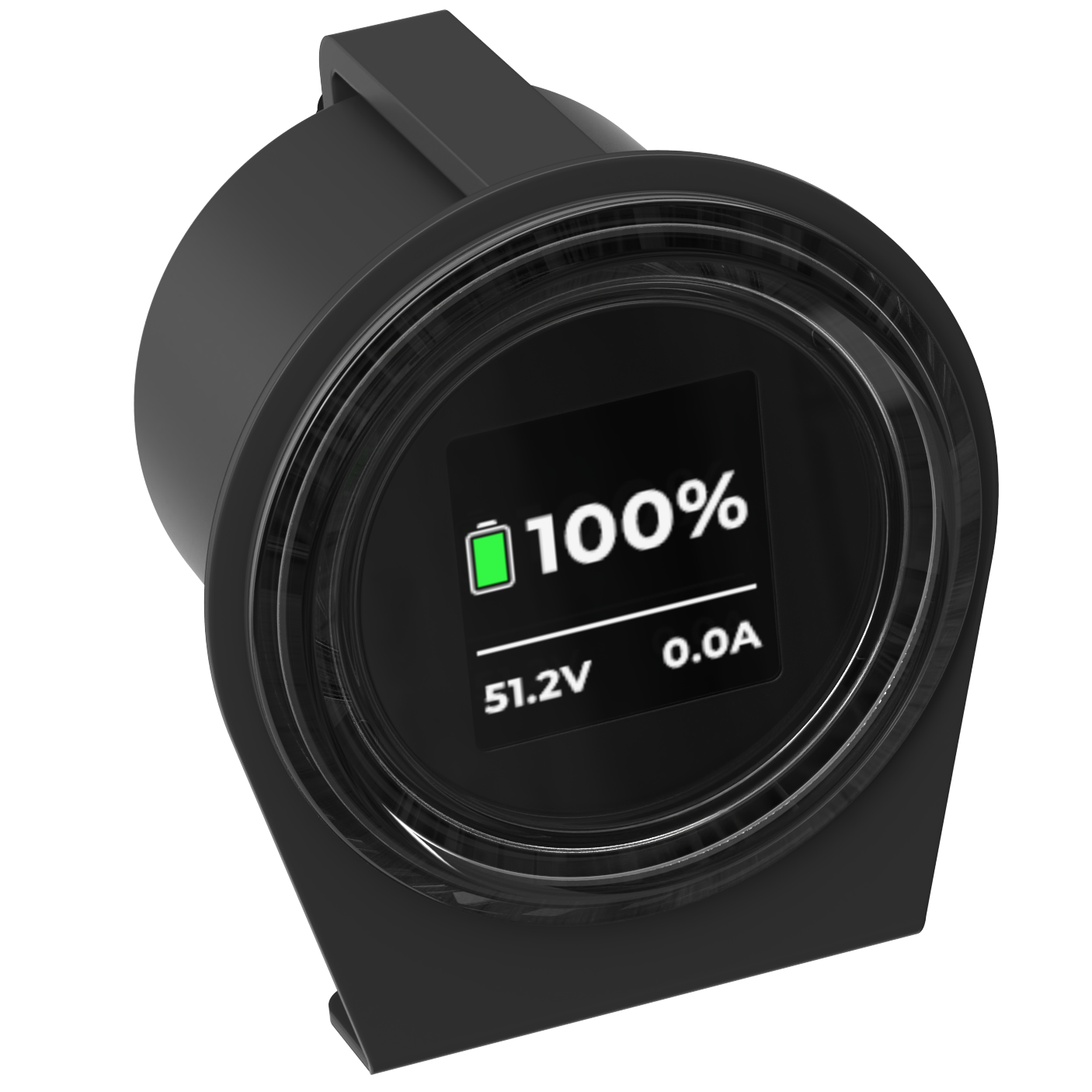

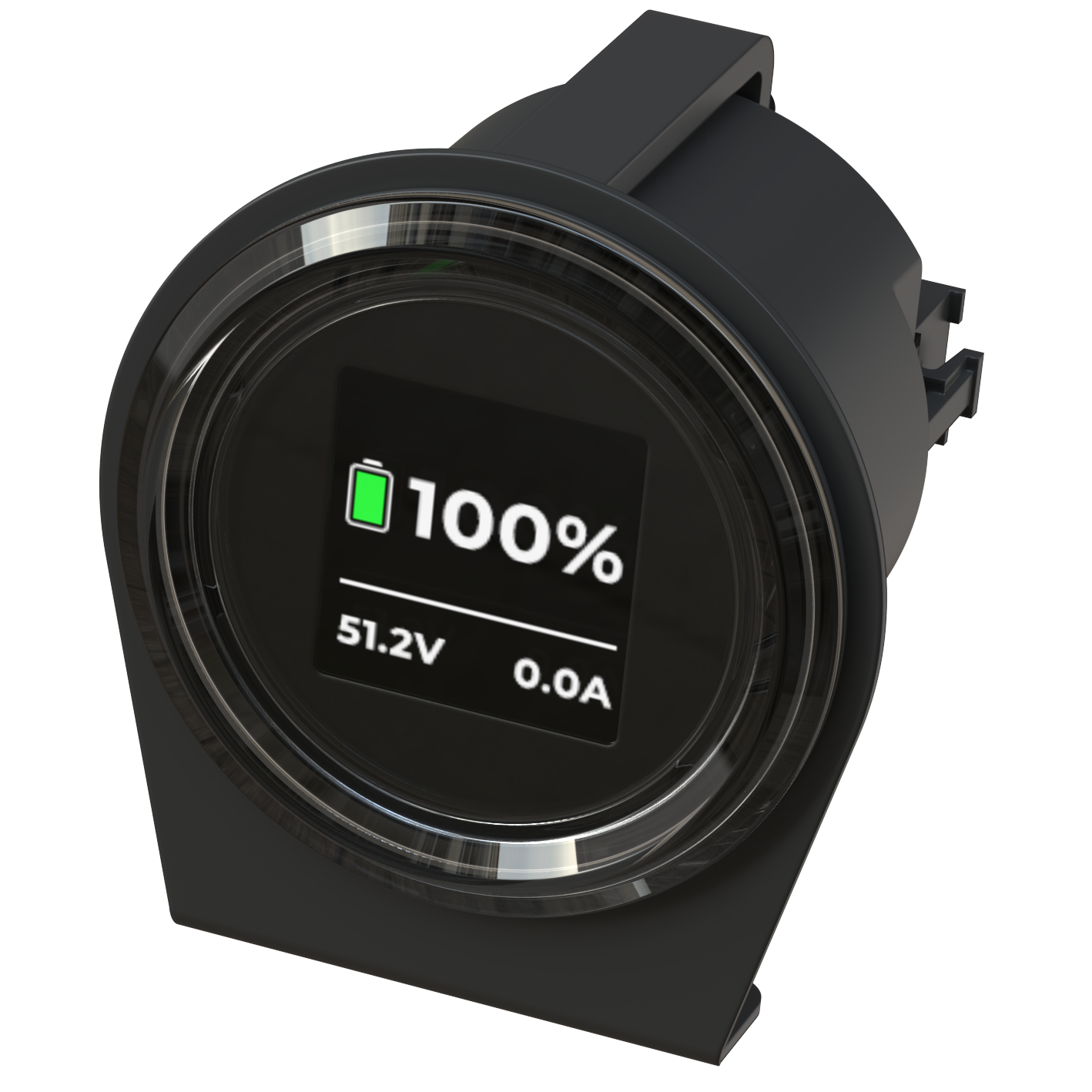

• Multi-Battery Monitoring Dashboard
  View and manage multiple batteries from a single interface with real-time system data.
• High Discharge Capability
  Supports up to 230A continuous discharge and up to 500A peak output.
• Extended Cycle Life
  3500+ cycles for long-term reliability and maintenance-free operation.
• Certified & Safe Internal Components
  Built with UL-certified cells and safety components for dependable performance.
• Rugged Off-Grid Design
  Engineered for marine, RV, and demanding off-grid environments.

Specifications

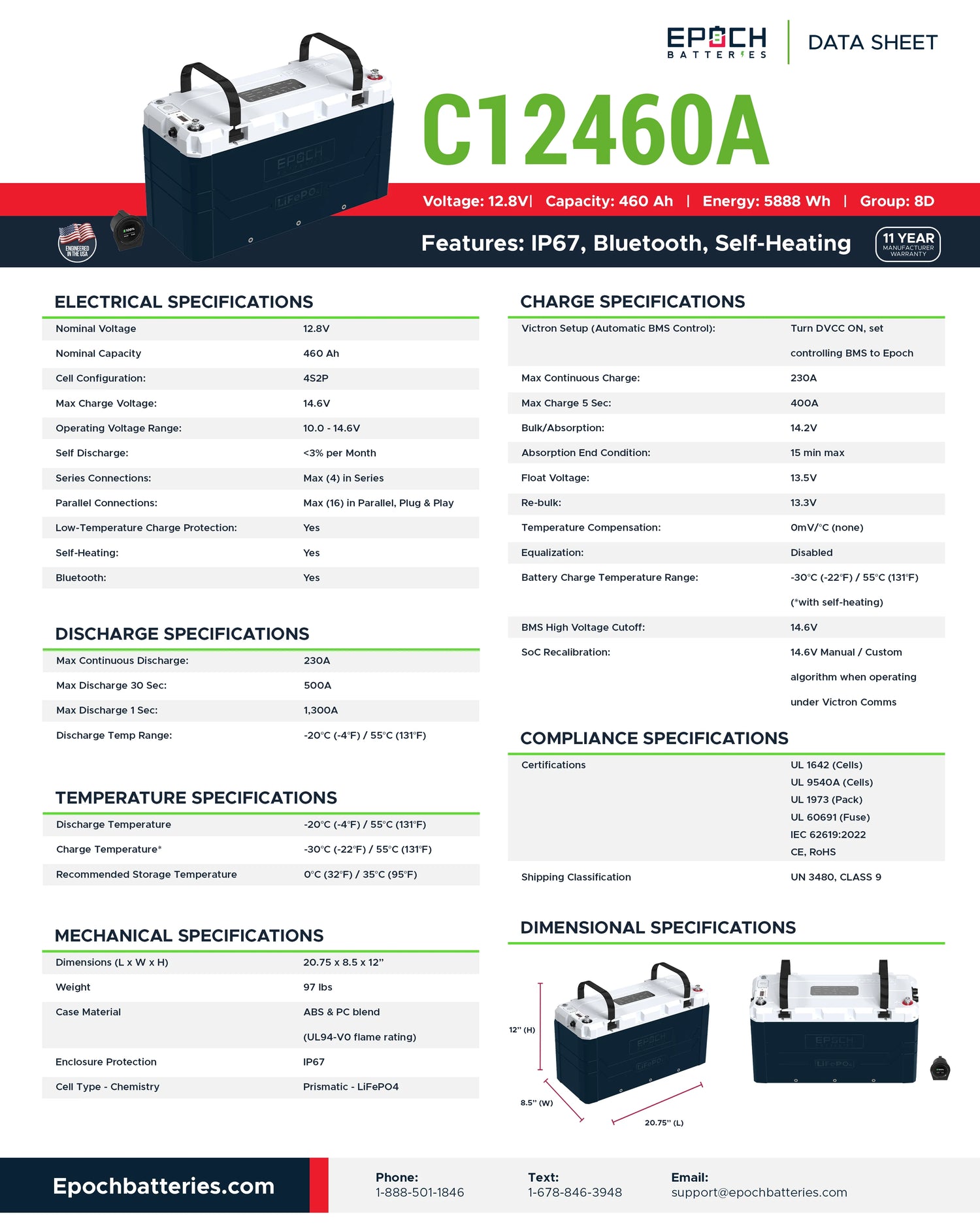

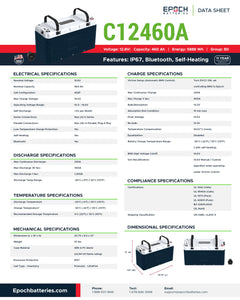

Official Specification Sheet (PDF)
Official User Manual (PDF)

Warranty
11-Year Manufacturer Warranty

Battery Type
LiFePO4 Lithium Battery

Rated Capacity
460Ah (5.89kWh)

Voltage
12.8V nominal

Cycle Life
3,500 cycles

Max Continuous Discharge
230A

Max Peak Discharge
500A (30 seconds), 1300A (1 second)

Max Charge Current
230A

Charge Voltage
14.2V

Float Voltage
13.5V

Operating Temperature
Charge: -30°C to 55°C (with heating)
Discharge: -20°C to 55°C

Storage Temperature
0°C to 35°C recommended

Terminals
M8 bolt

IP Rating
IP67

Dimensions
20.75" L × 8.5" W × 12" H

Weight
97 lbs

Connectivity
Bluetooth (iOS & Android), CANBUS (Victron Compatible)

Expandable Configuration
Max 4 in series / Max 16 in parallel

Protection
Overcharge, over-discharge, short circuit, overcurrent, high & low temperature protection

Certifications
UL1642, UL1973, UL9540A, IEC 62619, CE, RoHS, UN38.3

Recommended Charger
12V LiFePO4 compatible charger

Setup & System Integration

Firmware & Setup Instructions

Recommended Settings (Non-Victron Systems)
Absorption Voltage: 14.2V
Absorption Time: 15 minutes per battery
Float Voltage: 13.5V
Equalization: Off
Temperature Compensation: Disabled

Victron System Setup
Supports up to 16 batteries in parallel
CAN bus communication for full system integration
Connect via Cerbo GX / Ekrano GX
Enable DVCC and set controlling BMS to Epoch
System automatically manages charging profiles

Firmware & Smart Features
Over-the-air firmware updates via app
Improved high-voltage alarm handling
Enhanced scalability for large battery banks
Full system monitoring through upgraded battery gauge
