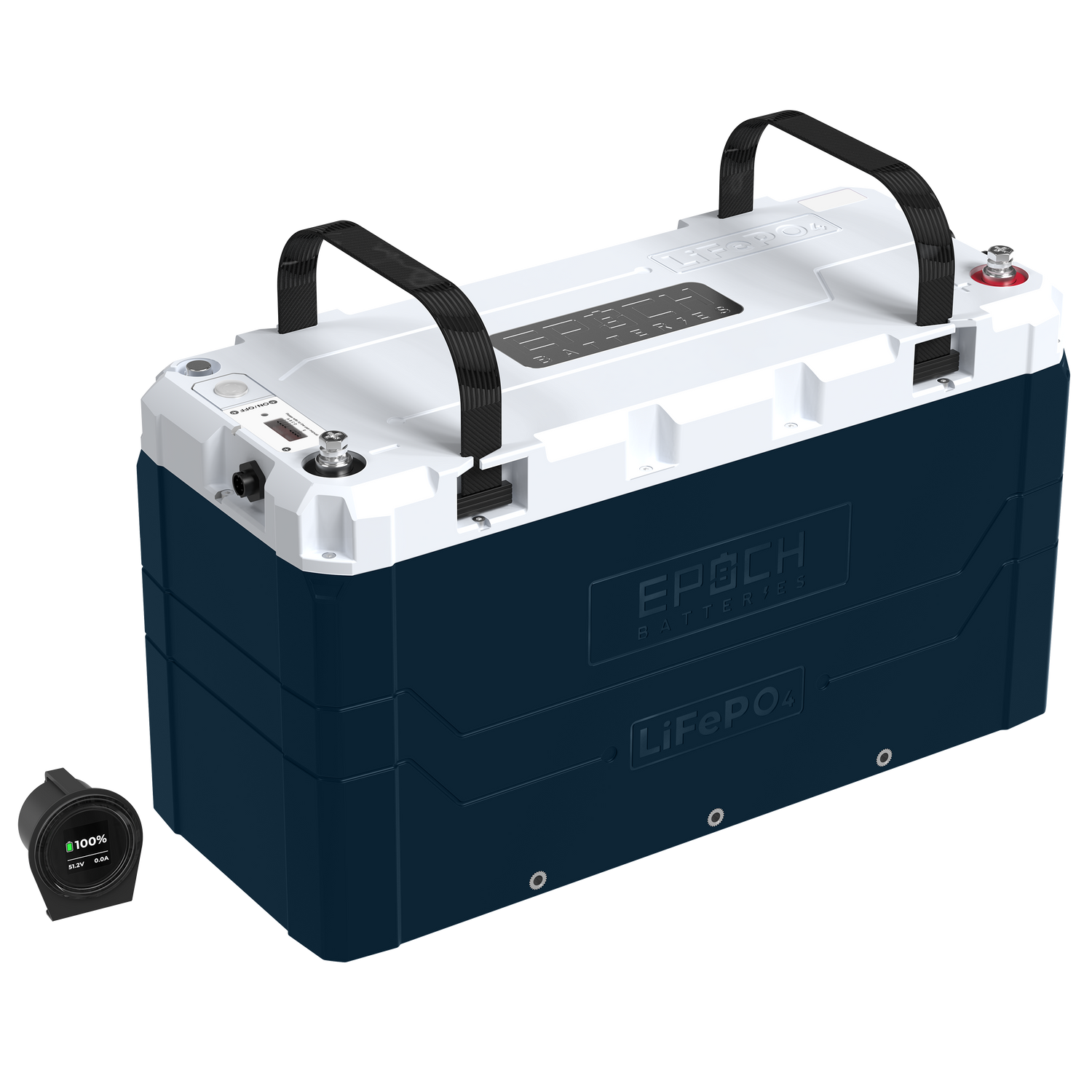

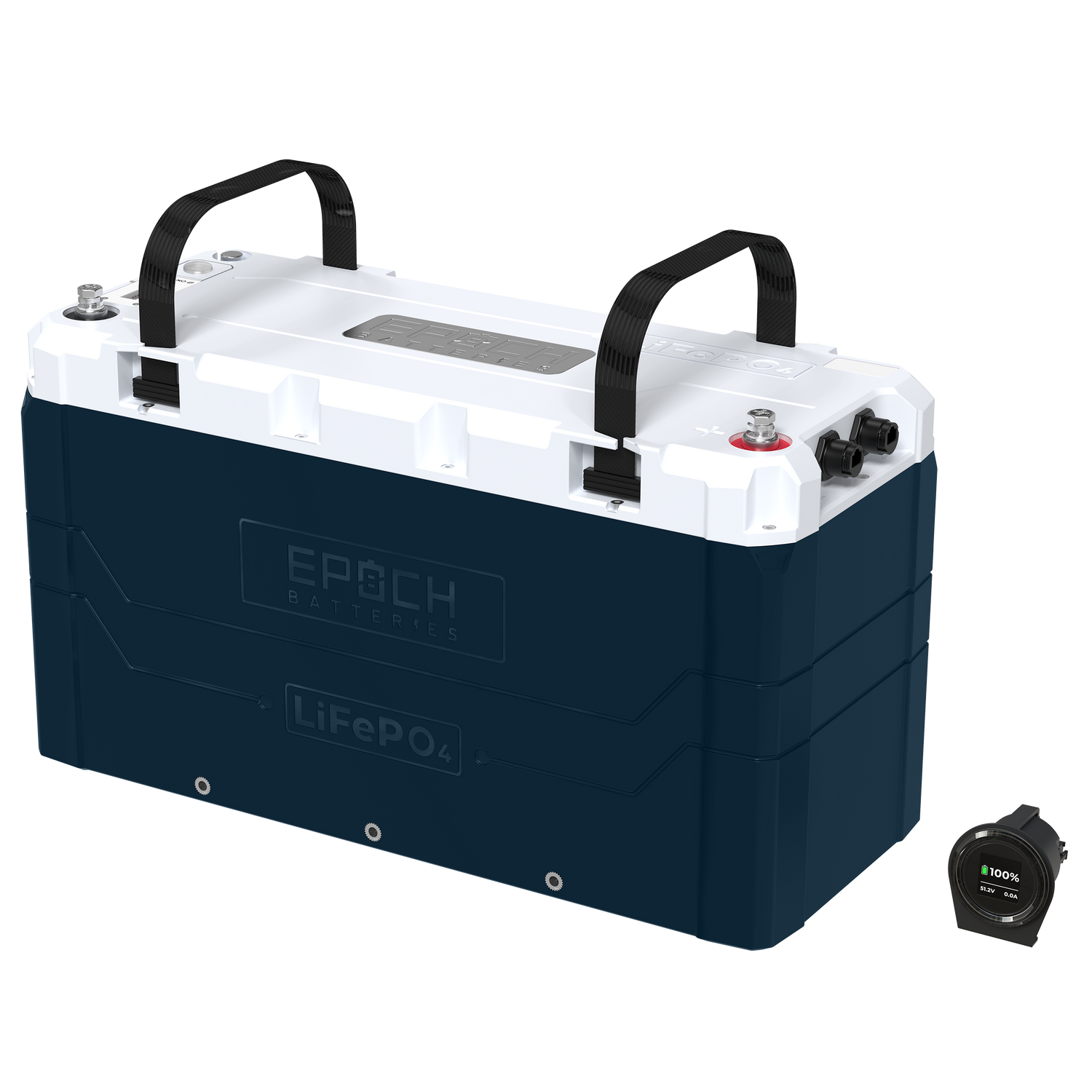

Epoch 24V 230Ah LiFePO4 Battery – Heated, Bluetooth, Victron Comms (V2 Elite Series)

Description

The 24V 230Ah V2 Elite Series LiFePO4 Battery is a high-capacity, marine-grade power solution engineered for demanding RV, marine, and off-grid energy systems. Built with advanced lithium iron phosphate (LiFePO4) chemistry, integrated heating, Bluetooth monitoring, and full Victron communication capability, it delivers reliable performance in both extreme environments and large-scale installations.

Designed for serious energy needs, this battery provides 5.89kWh of capacity, high discharge output, and seamless system integration. With IP67 waterproof protection, advanced BMS safety systems, and expanded parallel capability, it is built to perform where consistency, durability, and control matter most.

Whether you're powering a fully built van system, upgrading a marine electrical setup, or designing a scalable off-grid system, the V2 Elite Series delivers dependable, expandable energy with advanced monitoring and control.

Best For

• High-Capacity RV & Van Life Electrical Systems

• Marine House Battery & Coastal Power Setups

• Off-Grid Cabins & Scalable Energy Storage Systems

• Backup Power & Large Mobile Energy Systems

Features

• High-Capacity Energy Storage
  230Ah capacity (5.89kWh) designed for high-demand systems and extended runtime applications
• IP67 Waterproof & Dustproof Design
  Fully sealed enclosure protects against water, dust, and harsh outdoor environments
• Internal Heating System
  Enables safe charging in extreme cold conditions and improves low-temperature performance

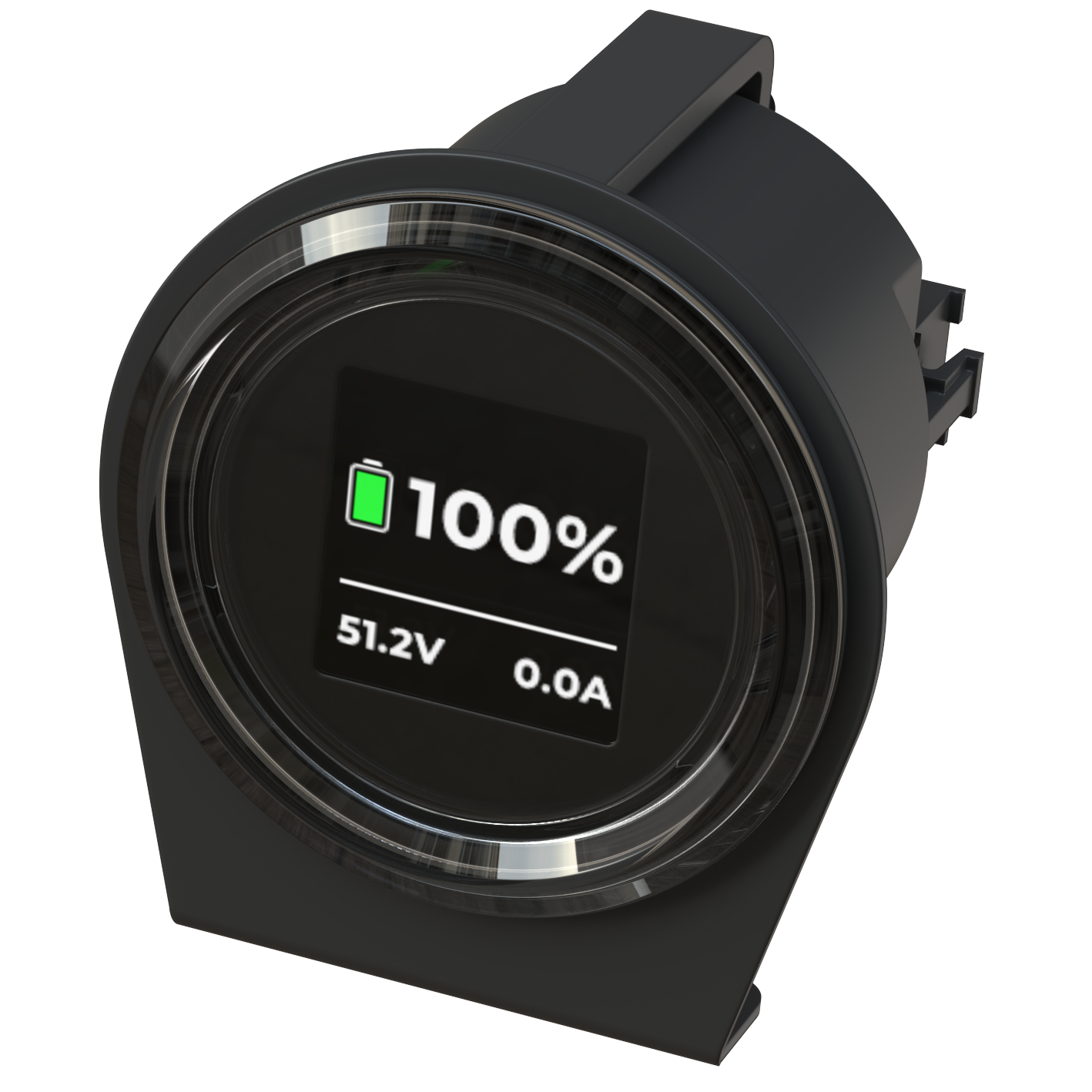

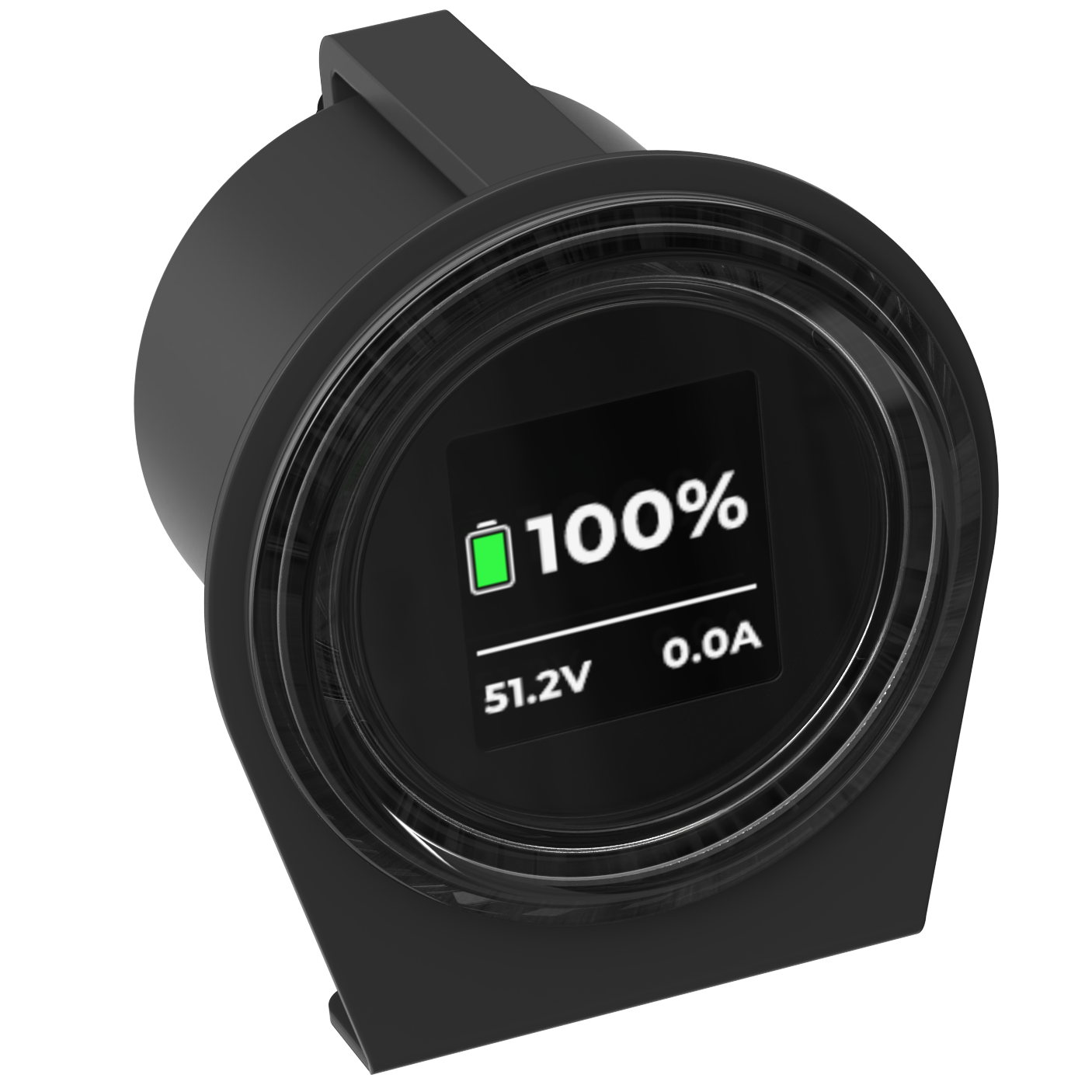

• Bluetooth Monitoring
  Monitor battery status, voltage, and performance in real time via iOS and Android apps
• Victron Communication Integration
  CANBUS communication enables seamless integration with Victron systems for advanced system control
• Advanced BMS Protection
  Built-in smart battery management system protects against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes
• High Output Performance
  Supports 230A continuous discharge with 500A peak output for demanding applications
• Scalable System Design
  Supports up to 2 batteries in series and 16 in parallel for large energy storage systems

Specifications

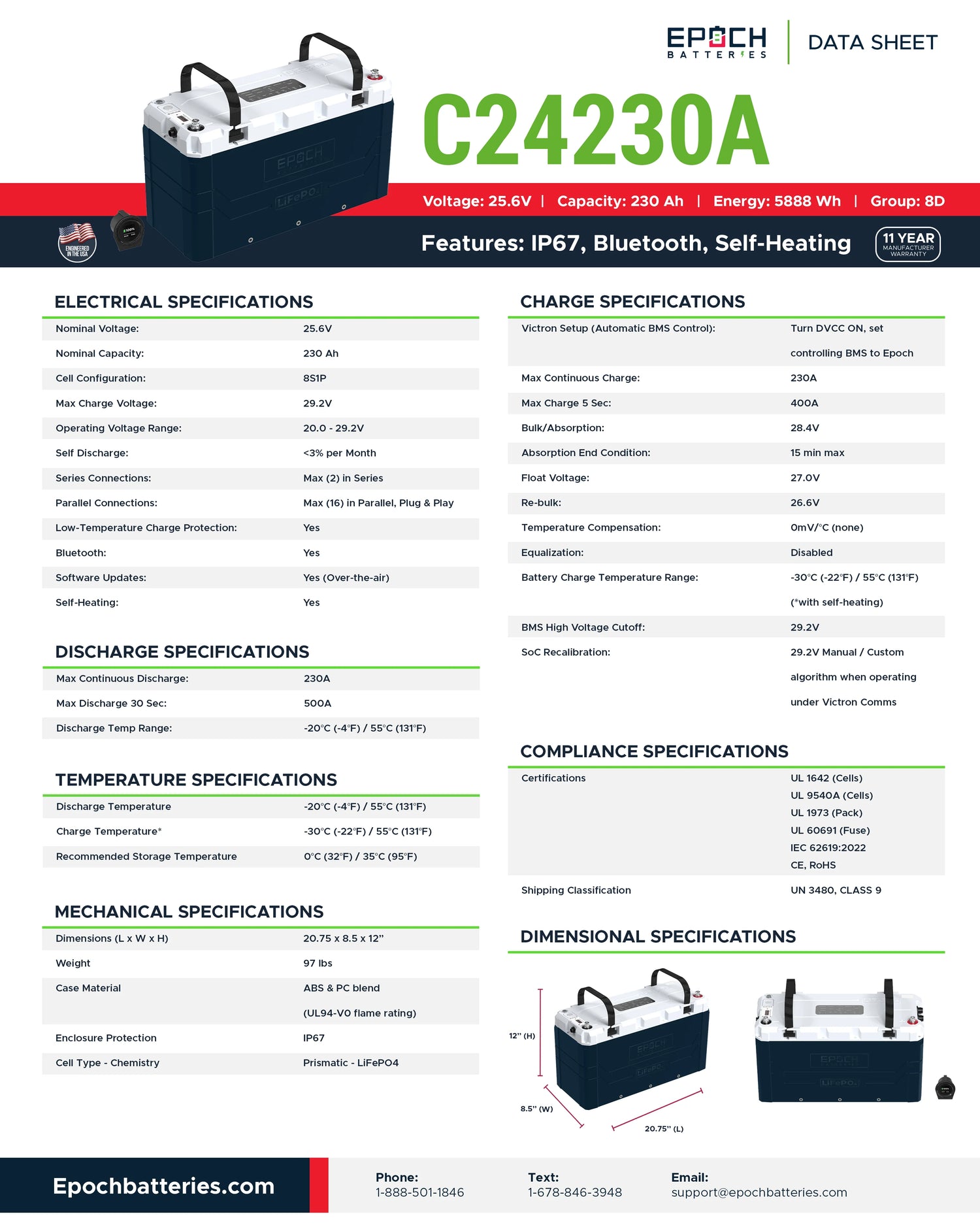

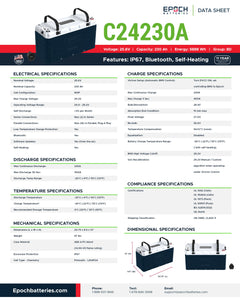

Quick Specification overview
is available in the product images.
Official User Manual (PDF)

Warranty
11-Year Manufacturer Warranty

Battery Type
LiFePO4 Lithium Battery

Rated Capacity
230Ah (5,888Wh)

Voltage
25.6V nominal

Cycle Life
3500+ cycles

Max Continuous Discharge
230A

Max Peak Discharge
500A (30 seconds)

Max Charge Current
230A

Charge Voltage
28.4V

Float Voltage
27.0V

Operating Temperature
Charge: -30°C to 55°C (with heating)
Discharge: -20°C to 60°C

Storage Temperature
0°C to 35°C recommended

Terminals
M8 bolt

IP Rating
IP67

Dimensions
20.75" L × 8.5" W × 12" H

Weight
97 lbs

Connectivity
Bluetooth (iOS & Android), CANBUS (Victron Compatible)

Expandable Configuration
Max 2 in series / Max 16 in parallel

Protection
Overcharge, over-discharge, overcurrent, short circuit, high & low temperature protection

Certifications
UL1642, UL1973, UL9540A, UL60691, IEC 62619, CE, RoHS, UN38.3

Recommended Charger
24V LiFePO4 compatible charger

Recommended Charging Settings
Bulk / Absorption: 28.4V
Absorption Time: 15 min max
Float: 27.0V
Re-bulk: 26.6V
Temperature Compensation: 0mV/°C (none)
Equalization: Disabled
