Epoch 48V 100Ah LiFePO4 Battery – Heated, Bluetooth, Victron Comms (V2-T Elite Series)

Description

The 48V 100Ah V2-T Elite Series LiFePO4 Battery is a high-capacity, system-ready power solution engineered for advanced off-grid, marine, RV, and energy storage applications. Built with lithium iron phosphate (LiFePO4) chemistry, internal heating, Bluetooth monitoring, full Victron communication capability, and an integrated serviceable Class-T fuse, it delivers exceptional performance, protection, and seamless system integration.

With 5.12kWh of energy capacity and 51.2V nominal voltage, this battery is designed for modern 48V systems requiring higher efficiency, lower current draw, and advanced inverter compatibility. The built-in 250A Eaton Class-T fuse provides premium short-circuit protection while reducing the need for external fuse installations. The IP67-rated enclosure ensures reliable operation in harsh environments, while the advanced Smart BMS continuously monitors and protects the battery during charging and discharging.

Designed for scalable energy systems, the V2-T Elite supports up to 16 batteries in parallel and communicates directly with Victron GX devices using CANBUS and DVCC, making it an ideal solution for large off-grid solar systems, backup power, marine installations, and professional energy storage projects.

Best For

• 48V Off-Grid Solar Power Systems
• Whole System Energy Storage & Backup Power
• Victron Energy Installations
• Marine Electrical Systems (House Battery)
• Expandable High-Capacity Power Systems

Features

• Integrated Class-T Safety Fuse
  Built-in user-serviceable 250A Eaton Class-T fuse provides premium short-circuit protection while eliminating the need for a separate external inverter fuse.
• High-Capacity Energy Storage
  100Ah capacity (5.12kWh) designed for demanding 48V power systems and extended runtime.
• Victron Communication Integration
  Native CANBUS communication with DVCC support enables seamless integration with compatible Victron GX devices for advanced monitoring and battery management.
• IP67 Waterproof & Dustproof Design
  Fully sealed enclosure protects against water, dust, and harsh operating environments.
• Internal Heating System
  Allows safe charging in freezing temperatures and improves cold-weather performance.
• Bluetooth Monitoring

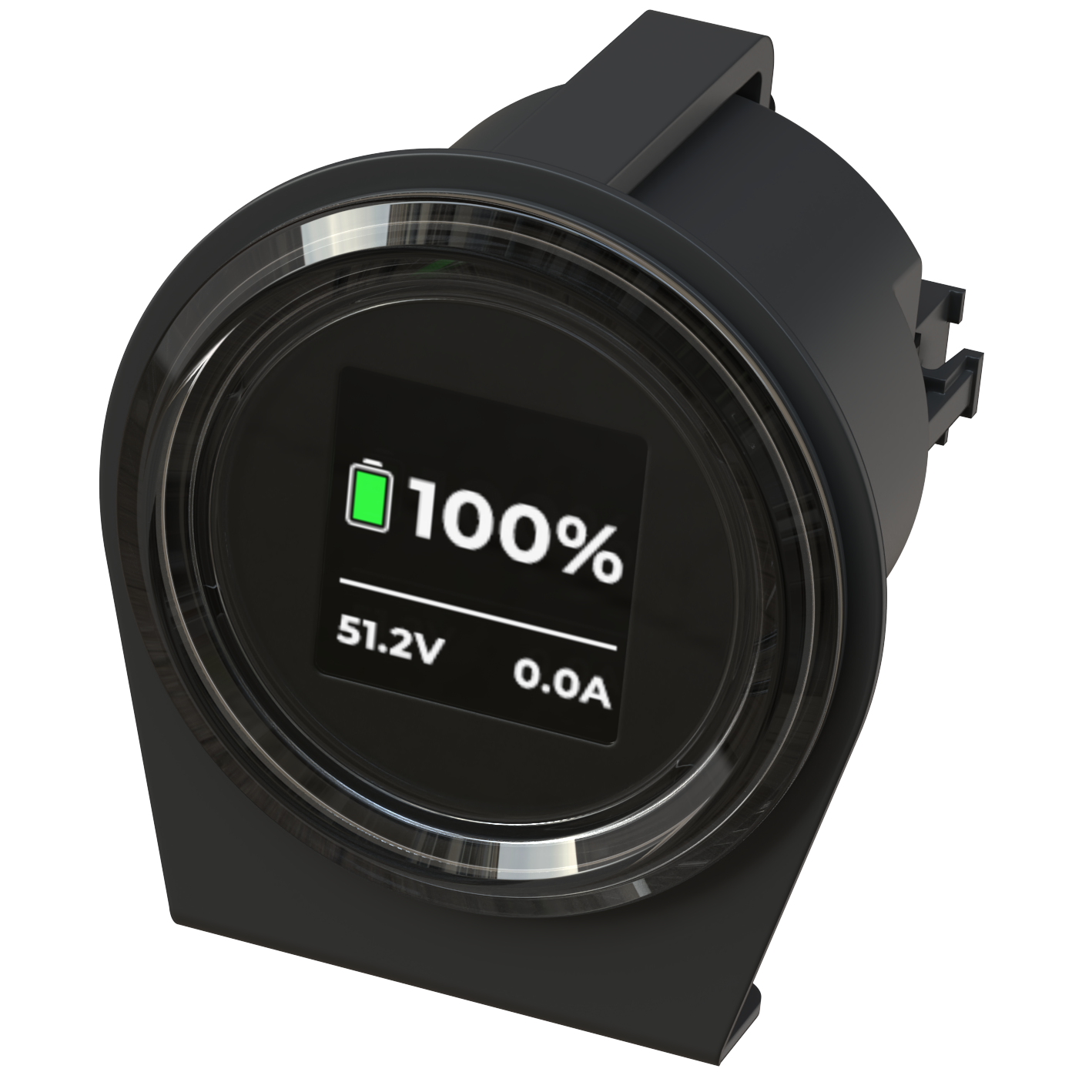

  Monitor battery status, cell voltage, state of charge, and system performance in real time using the Epoch app for iOS and Android.
• Advanced Smart BMS Protection
  Protects against overcharge, over-discharge, overcurrent, short circuit, and high and low temperature conditions.
• Expandable System Design
  Supports up to 16 batteries in parallel for scalable energy storage systems up to 81.92kWh.

Specifications

Warranty
11-Year Manufacturer Warranty

Battery Type
Heated LiFePO4 Lithium Battery with Bluetooth, Victron Communication & Integrated Class-T Fuse

Rated Capacity
100Ah (5,120Wh)

Voltage
51.2V nominal

Cycle Life
3500+ cycles

Max Continuous Discharge
150A

Max Peak Discharge
300A (30 seconds)

Max Charge Current
100A

Integrated Fuse
250A User-Serviceable Eaton Class-T Fuse

Charge Voltage
56.8V (Absorption)

Float Voltage
54.0V

Operating Temperature
Charge: -30°C to 55°C (with internal heating)
Discharge: -20°C to 55°C

Storage Temperature
0°C to 35°C recommended

Terminals
M8

IP Rating
IP67

Dimensions
20.86" L × 8.65" W × 12.06" H

Weight
97 lbs (44kg)

Connectivity
Bluetooth (iOS & Android), CANBUS (Victron Compatible with DVCC)

Expandable Configuration
Up to 16 batteries in parallel (81.92kWh maximum)

Protection
Smart BMS with overcharge, over-discharge, overcurrent, short circuit, high & low temperature protection

Certifications
UL1642, UL1973, UL9540A, UL60691, IEC 62619:2022, CE, RoHS, UN38.3

Recommended Charger
48V LiFePO4 compatible charger with programmable charging profile
